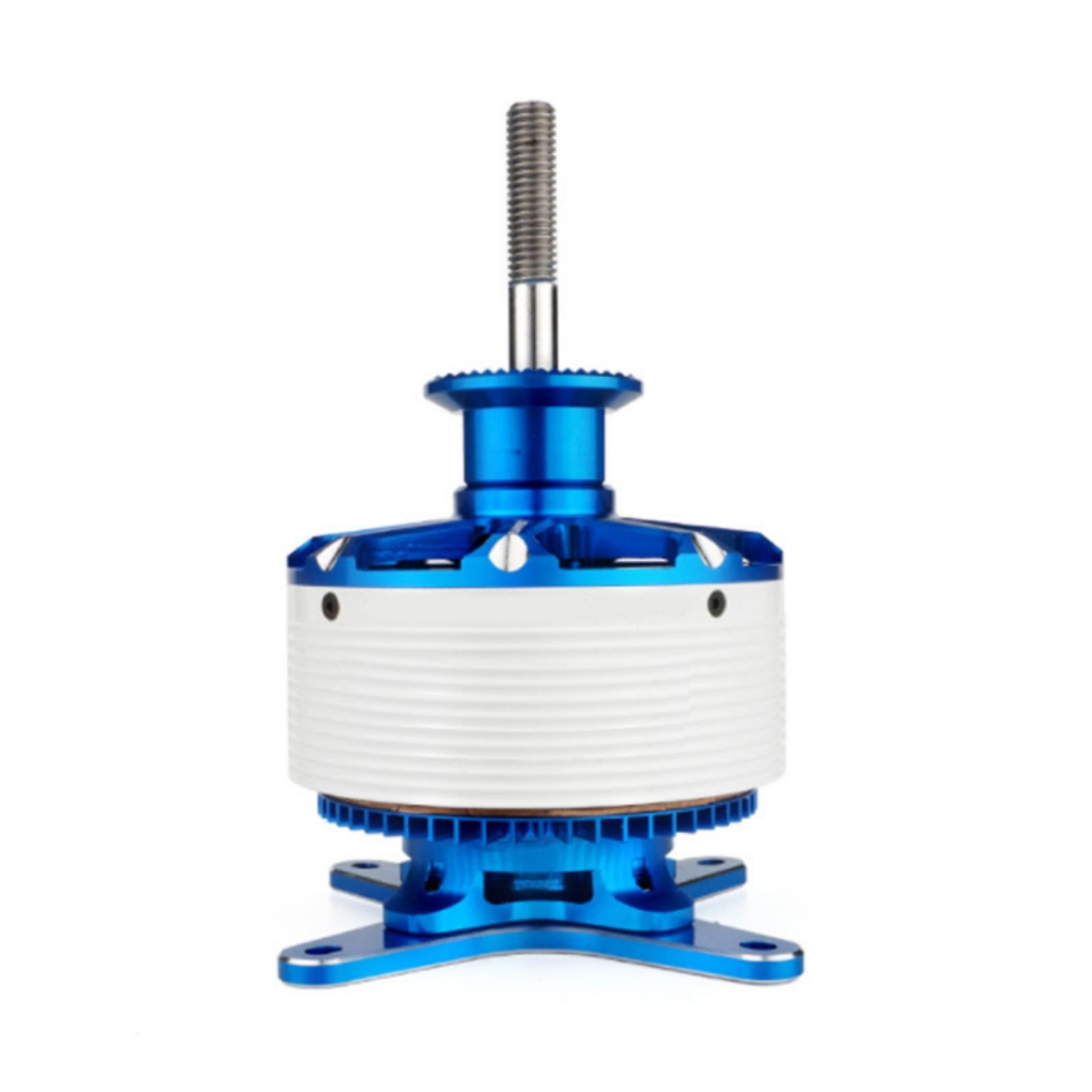

160KV Brushless Motor for Fixed Wing Drone
160KV Brushless Motor for Fixed Wing Drone 160KV Brushless Motor for Fixed Wing Drone 160KV Brushless Motor for Fixed Wing Drone

160KV Brushless Motor for Fixed Wing Drone

$99.98
| Write your review
BLDC motors for fixed-wing drones, rotating speed at 160KV or 190KV, propeller size optional, brushless motors for RC aircraft fixed wing to provide longer running time, to ensure high-speed motor jitter-free operation, high reliability.
SKU: BLDC-FWD-160
*
increase decrease
  • Overview
  • Contact Us

160KV brushless drone motor with propeller, shaft diameter 10mm, with good insulation and heat resistance, more powerful than other ordinary brushless motors, widely used in RC aircraft, drones, fixed-wing, helicopters and airplanes.

Basic Specifications

Model BLDC-X7025-160 BLDC-X7025-190
Motor KV 160KV 190KV
Stator  Diameter 70
Stator Thickness 25
Shaft diameter 10mm
Interphase Internal Resistance 53mΩ 25.8mΩ
Motor Size Motor length 67mm
Motor Silicone Wire Specifications Lead wire
Motor Weight 780g 818g
Number of Slots 24N22P
No-Load Current 49.993A 1.8A
Maximum Continuous Power 540W 45600W
Maximum Continuous Current 120A/30s 135A/30s
Operating Rated Voltage (Lipo) 37.89V 38.05V
ESC Recommended 30A 160A
Recommended Propeller Specifications 2110/2210/2214/2410 21*10/22*10

Features

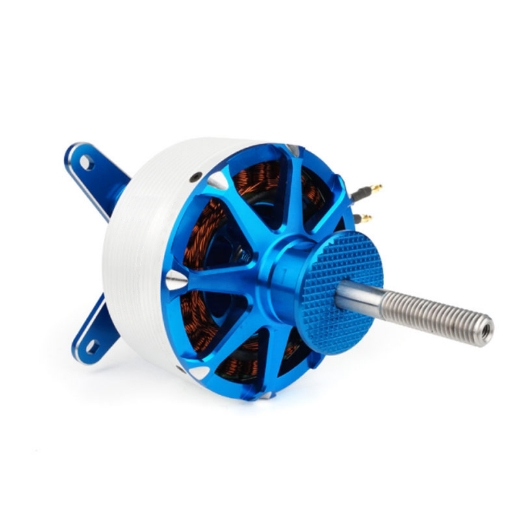

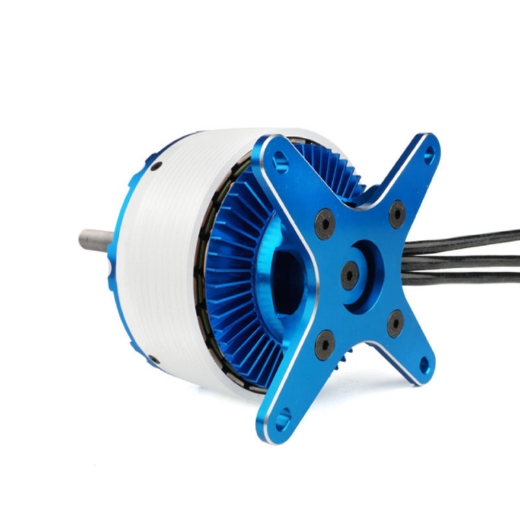

  • 160KV/190KV Brushless motor cool magic blue rotor end cap with six contours, strong and sturdy. High-quality white metallic paint with blue end caps for a more chic layered aesthetic. The stator end caps are hollowed out around the perimeter, which also increases the heat dissipation area for better heat dissipation.
  • Each drone's brushless motor is made by strict dynamic balancing. Original NSK bearings for lower noise and smoother operation. High precision CNC machined parts, and fine assembly process to achieve higher runout and concentricity standards.
  • Circular magnet 0.2MM air gap, lower iron loss 0.2MM core, full hand winding, super high slot fill rate.

Dimensions (Unit: mm)

160KV small brushless motor for drone dimension

Tips: How are the drone motors controlled?

ESCs are responsible for controlling the speed of each motor, so the most common UAV architecture involves using an ESC specifically for each motor. All ESCs must be able to communicate with each other directly or indirectly through the flight controls in order to easily control the drone.
