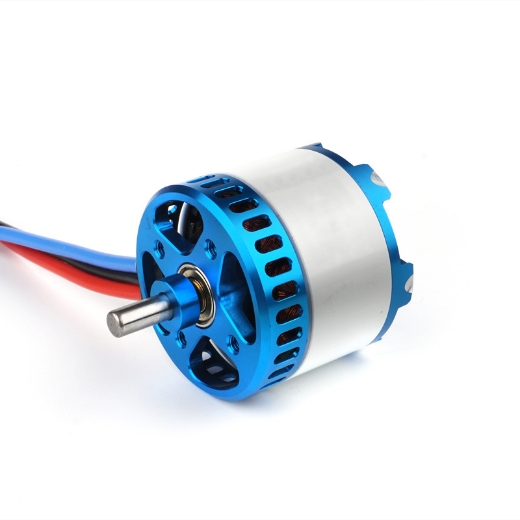

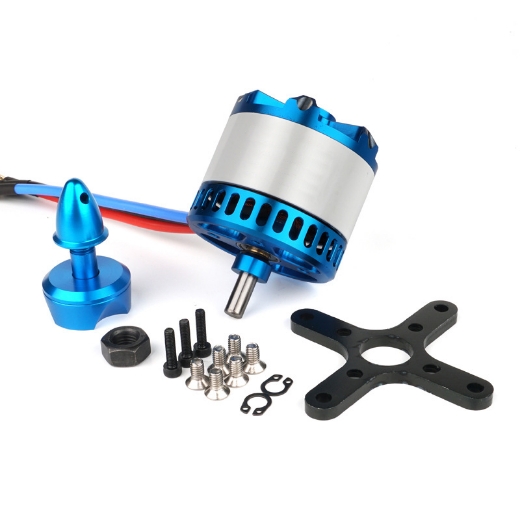

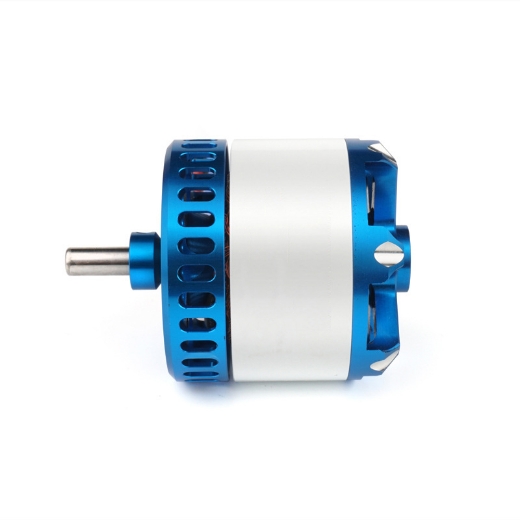

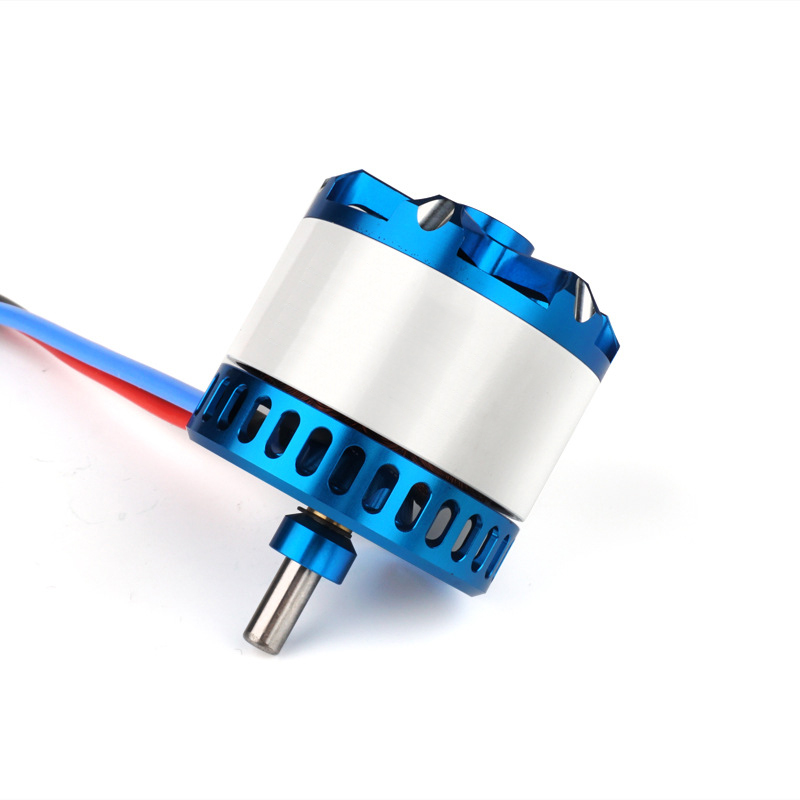

480KV Brushless Motor for Fixed Wing Drone
480KV Brushless Motor for Fixed Wing Drone 480KV Brushless Motor for Fixed Wing Drone 480KV Brushless Motor for Fixed Wing Drone 480KV Brushless Motor for Fixed Wing Drone

480KV Brushless Motor for Fixed Wing Drone

$421.89
| Write your review
480KV brushless motor shaft diameter 6mm, NSK precision bearings, lipo 5~6s, responsive and extremely smooth flight, brushless motor mentions high power and high speed design to provide longer running time for drone fixed wing.
SKU: BLDC-FWD-480
*
increase decrease
  • Overview
  • Contact Us

Low price fixed wing drone brushless motor speed 480KV, operating rated voltage (lipo) 5~6S, 12N14P high torque motor design, maximum efficiency, light weight, low noise, higher thrust, suitable for RC aircraft, airplanes, multi-rotors, helicopters, fixed wing and robotic arms.


Basic Specifications

Model BLDC-X4120-480 BLDC-X4120-550 BLDC-X4120-650
Motor KV 880KV 950KV 1100KV
Number of Slots 12N14P
Interphase Internal Resistance 22.5mΩ 18.5mΩ 11.7mΩ
Shaft diameter 6mm
Motor Size φ49.7*70.0mm
Shaft Diameter 3.175mm
Motor Silicone Wire Specifications 20AWG 110mm
Motor Weight 292g 293g 290g
Operating Rated Voltage (Lipo) 6S 6S 5-6S
No-Load Current 1.5A/10V 1.9A/10V 2.1A/10V
Maximum Continuous Power 2425W 2500W 2750W
Maximum Continuous Current 97A/30s 100A/30s 110A/30s
ESC Recommended 100A 100-120A 100-120A
Recommended Propeller Specifications 6S(EOLO15*8/15*10/16*8)
6S(EOLO14*7/14*8/15
5S(EOLO15*8/15*10)

Features

  • 480KV/550KV/650KV Brushless motor cool magic blue rotor end cap with six contours, strong and sturdy. High-quality white metallic paint with blue end caps for a more chic layered aesthetic. The stator end caps are hollowed out around the perimeter, which also increases the heat dissipation area for better heat dissipation.
  • Each drone's brushless motor is made by strict dynamic balancing. Original NSK bearings for lower noise and smoother operation. High precision CNC machined parts, fine assembly process to achieve higher runout and concentricity standards.
  • Circular magnet 0.2MM air gap, lower iron loss 0.2MM core, full hand winding, super high slot fill rate.

Dimensions (Unit: mm)

480KV brushless motor for fixed wing drone dimension
Tips: How long does a brushless drone motor last?

Brushed drone motors will last from 1,000 to 3,000 hours. Brushless motors will last up to 10,000 hours of flight time before they start to have problems. The life span of a drone motor is related to the load the motor is used under and the environment it is operating in.
