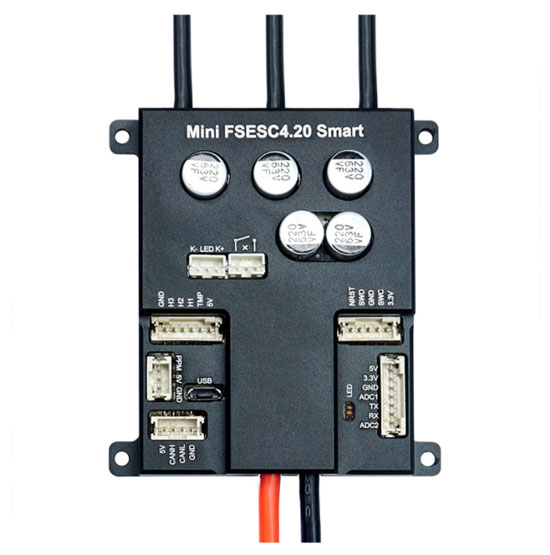

50A 3-12S Brushless ESC Controller for Single Motor
50A 3-12S Brushless ESC Controller for Single Motor 50A 3-12S Brushless ESC Controller for Single Motor 50A 3-12S Brushless ESC Controller for Single Motor

50A 3-12S Brushless ESC Controller for Single Motor

$445.86
| 1 review(s) | Write your review
Buy online single drive ESC controller for brushless motor, PWM signal input, current continuous 50A, peak at 100A, voltage 8V-60V(3 - 12S), housing made of aluminum alloy, good heat dissipation, suitable for the robot, 4WD RC car, robot arm, and DUY off-road vehicle.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-ESC-503
increase decrease
  • Overview
  • Document
  • Contact Us

Selling brushless ESC controller for single motor, current continuous 50A, peak at 100A, voltage 3 - 12S, aluminum case, good heat dissipation, strong current resistance, automatic throttle range calibration, easy to use.

Specifications

  • Model: BLDC-ESC-S50A
  • Voltage: 8V-60V(3 - 12S)
  • Firmware: Latest firmware version
  • Power Current: 50A continuous/200A peak
  • Signal: PWM input
  • Communication Port: USB, CAN, UART
  • Control Modes: BLDC, FOC
  • Size: 83x62x22.5 ( mm )
  • Switch Off: Fireproof flower/intelligent version of fireproof flower switch
  • Input Source: PPM, analog, NRF, NYKO, KAMA, NUNCHUCK
  • Support Sensor: ABI, HALL, AS 5047, AS5048A

Wiring diagram
50A 3-12s brushless esc controller wiring diagram

Dimensions (Unit: mm)
50A 3-12s brushless esc controller dimension
Application

Brushless esc controller application

Tips: How to choose an electronic speed controller?

  • The speed of the brushless motor does not exceed the speed of ESC, it is possible to match.
  • Brushless motor speed calculation formula: battery voltage*motor KV value.
  • Brushless motor stator speed calculation formula: motor KV value * battery voltage * a number of motor poles.
  • The limit speed of the V4 series ESC is 60,000 ERPM.
  • The limit speed of the V6 series ESC is 1 50000 ERPM.
  • If the maximum speed of the motor exceeds the speed of the ESC, you can also use a lower motor working voltage to pair the ESC, but this is not recommended, because this does not really play the role of the motor.

Download PDFBrushless Electronic Speed Controller Catalog
