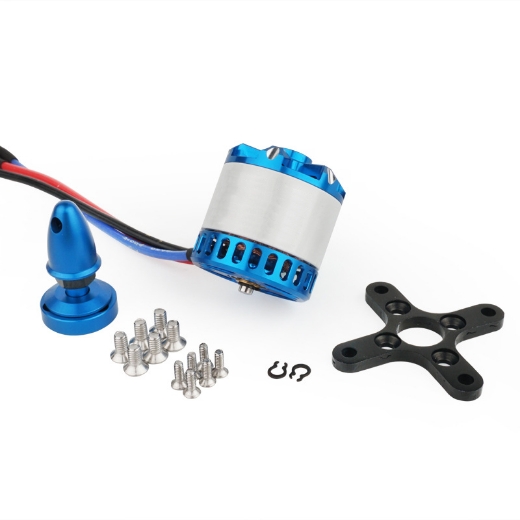

Small brushless motor for fixed wing drone, low price, speed options from 570KV, 860KV to 1250KV, recommended to use with propellers, enhanced anti-loop, safe and stable, the active heat sink can greatly reduce the motor temperature, improve the life of brushless motor.
Basic Specifications
| Model |
BLDC-X2820-570 |
BLDC-X2820-860 |
BLDC-X2820-1000 |
BLDC-X2820-1250 |
| Motor KV |
570KV |
860KV |
1000KV |
1250KV |
| Stator Diameter |
28 |
| Stator Thickness |
20 |
| Number of Slots |
12N14P |
| Interphase Internal Resistance |
53mΩ |
25.8mΩ |
18.5mΩ |
13.1mΩ |
| Motor Size |
Motor length: 42mm |
φ35.0*61.0mm |
φ35.0*61.0mm |
φ35.0*61.0mm |
| Shaft Diameter |
5.0mm |
| Motor Silicone Wire Specifications |
20AWG 110mm |
| Motor Weight |
145g |
143g |
147g |
144g |
| Operating Rated Voltage (Lipo) |
/ |
3-4S |
| No-Load Current |
0.83A |
1.2A/10V |
1.2A/10V |
2.5A/10V |
| Maximum Continuous Power |
1325W |
960W |
1036W |
1172W |
| Maximum Continuous Current |
53A/30s |
65A/30s |
70A/1min |
79A/30s |
| ESC Recommended |
50-60A |
50-60A |
60-80A |
80A |
| Recommended Propeller Specifications |
EOLO12*6/EOLO13*7 |
APC13*6.5/APC13*8 |
4S(APC11*5.5 |
APC12*6/APC1050 |
Features

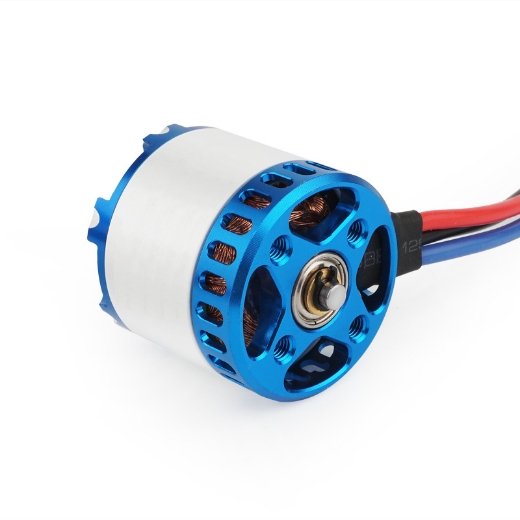

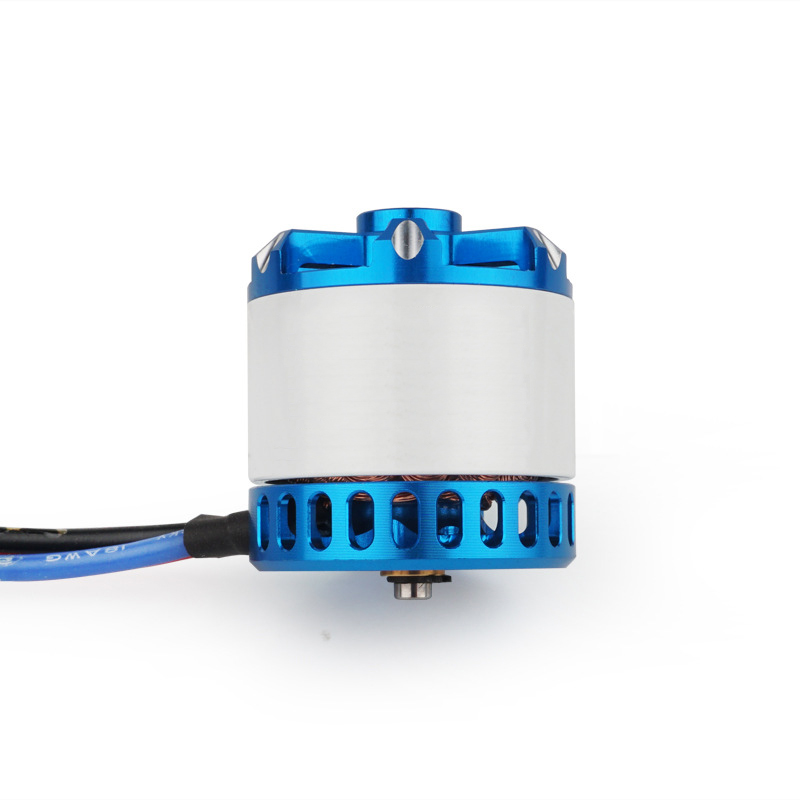

- 570KV/860KV/1000KV/1250KV Brushless motor cool magic blue rotor end cap with six contours, strong and sturdy. High quality white metallic paint with blue end caps for a more chic layered aesthetic. The stator end caps are hollowed out around the perimeter, which also increases the heat dissipation area for better heat dissipation.
- Each drone brushless motor is made by strict dynamic balancing. Original NSK bearings for lower noise and smoother operation. High precision CNC machined parts, fine assembly process to achieve higher runout and concentricity standards.
- Circular magnet 0.2MM air gap, lower iron loss 0.2MM core, full hand winding, super high slot fill rate.

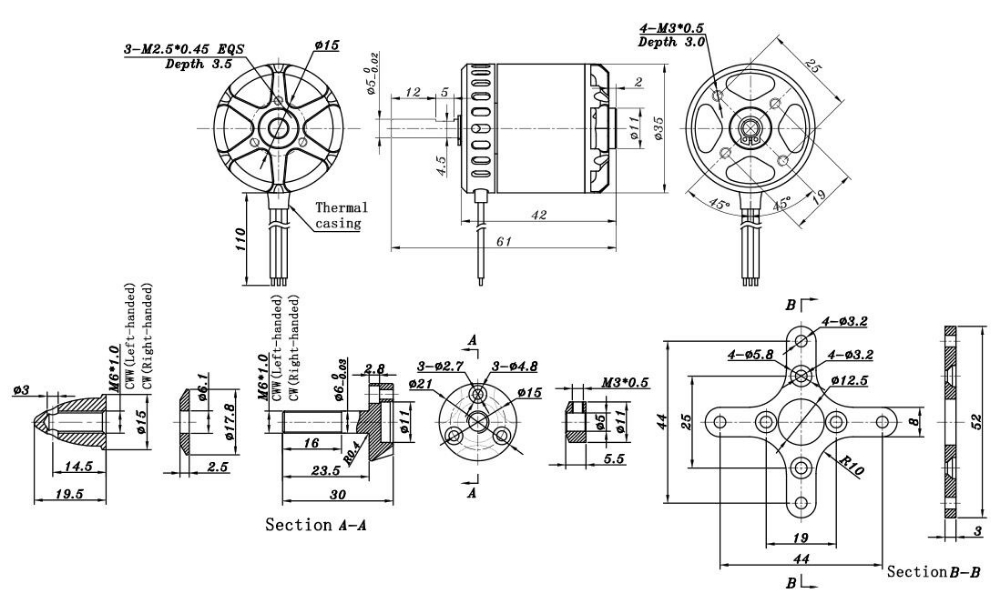

Dimensions (Unit: mm)
Tips: The relationship between motor and propeller, ESC?
The model number of motor products is generally based on KV value. For example, the model number 2312KV960, 23 means the outer rotor diameter of the motor is 23mm, 12 means the height of the rotor is 12mm, KV means the actual speed of the motor increases 960r/min for every 1V increase in voltage.
Many people think that the large KV motor increases the propeller to provide a large lift load, in fact, it is not. Because the high KV motor relative to the same level of low KV motor, high speed but small torque, the larger the propeller, the greater the lift, but the corresponding need for greater force to drive, the smaller the motor KV, the greater the rotation force, the higher the propeller speed, the greater the lift, in summary, large propellers need to use low KV motor, and vice versa, the need for high KV motor. That is to say, large with low, small with high.
ESC is an electronic speed controller, the role is to control the speed of the motor according to the control signal, the DC input of the battery into a certain frequency of AC output used to control the speed of the motor.
