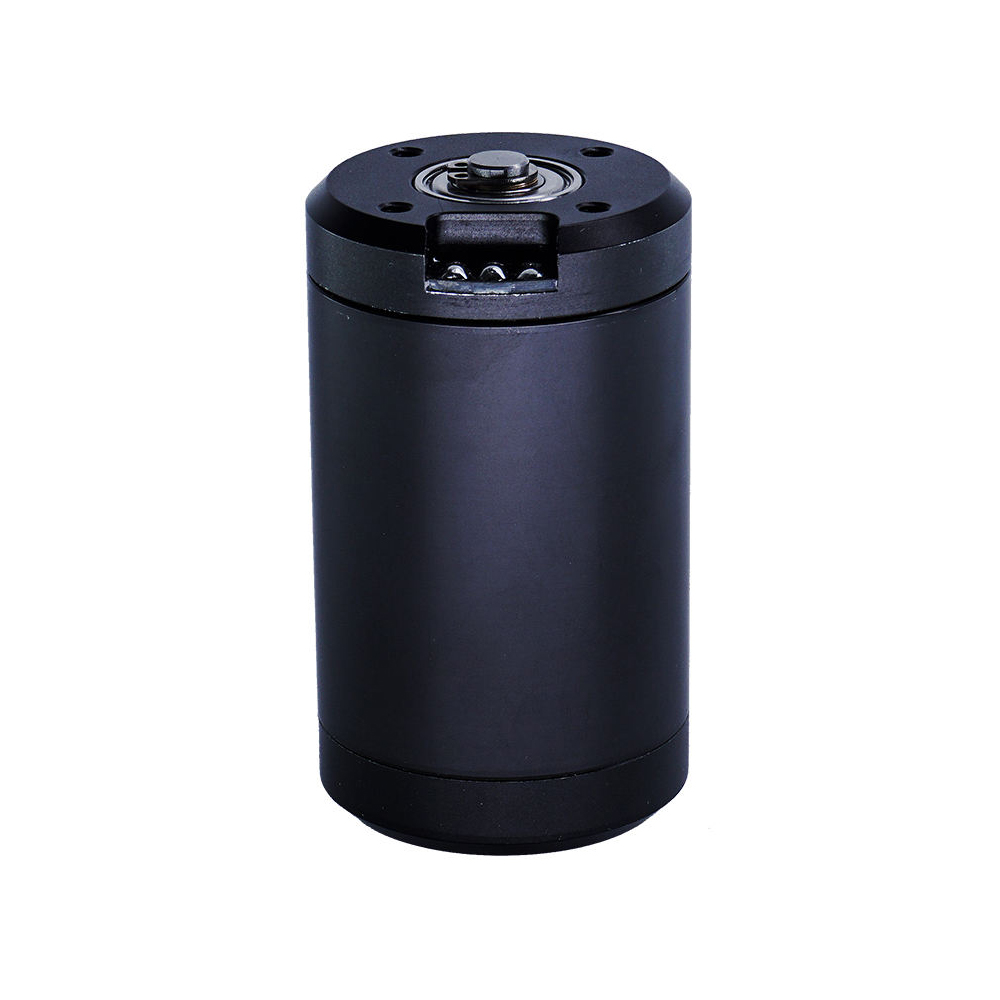

Factory price IP68 waterproof outrunner brushless motor suit for underwater operating, which with rotation speed 140KV, max. load current 29.5A, input voltage 14-37V (powered by 4-10S batteries). Waterproof BLDC motor is special for underwater operation, which can be used as a water propeller.
Specification

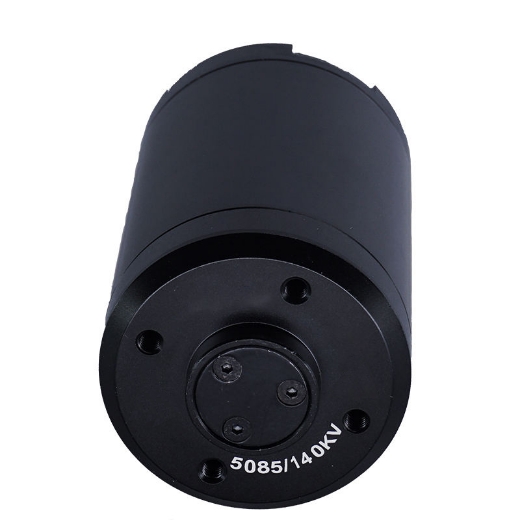

Model: BLDC-F5085
Max Power: 650W
Rotation Speed kV (RPM/V): 140KV
Max Input Voltage: DC 14-37V
No-load Current: 0.8A
Maximum Load Current: 29.5A
No-load Speed: 3100 rpm
Motor Dimension: 50*85 mm
Waterproof Grade: IP28
Note: The motor is powered by 4-10S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.
Dimensions (mm)
ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor
- The speed of the BLDC motor does not exceed the speed of ESC, it can be matched and used.
- Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
- The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
- If the maximum speed of BLDC motor exceeds the speed of the electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of a brushless DC motor.
ESC (Electronic Speed Controller) Specification
| Model |
Current Value |
Number of Batteries (Input Voltage) |
| FSESC 4.12 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
| FSESC 4.20 * |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
| VESC6.6 integrated switch dual drive version |
1-channel 100A continuous, 2-channel 200A continuous
1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
| VESC6.6 integrated switch dual drive version |
1-channel 100A continuous, 2-channel 200A continuous
1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
| FSESC6.7 VESC6.6 single drive integrated |
Continuous 70A, peak 200A |
3S-12S (8V-60V) |
| VESC4 dual drive integration |
50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel |
3S-12S (8V-60V) |
| ODESC3.6 single drive/dual drive |
50A continuous 1-channel, peak 120A 1-channel |
3S-12S (8V-60V) |
| VESC6 dual drive |
1-channel 100A continuous, 2-channel 200A continuous
1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
| Single drive V6 75200 |
Continuous 200A |
3S-12S (8V-60V) |
| Single drive VESC6 waterproof version |
Continuous 60A, peak 150A |
3S-12S (8V-60V) |
Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.
Details
Tips: Can brushless dc motor work underwater?
Most BLDC motors are not waterproof as they are not required to operate in an environment. The waterproof material also limits the overall performance of the motor while increasing the cost. These costs are usually only valuable for specific applications, such as electric surfboards, submersible propellers, and other applications where the motor may come into contact with liquids.
Brushless.com Waterproof brushless DC motors work underwater. This is a common industry standard named after waterproofing. This is not a modified standard motor, but a true waterproof motor that will work well in deep water environments. Motors are equipped with redundant shaft seals, O-rings, sealed cable feed-throughs, pressure equalization and other waterproofing features. These design features keep the waterproof BLDC motor from failing even after prolonged exposure to water.
