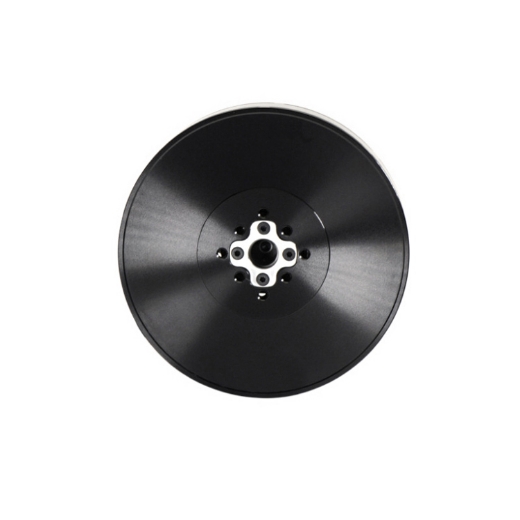

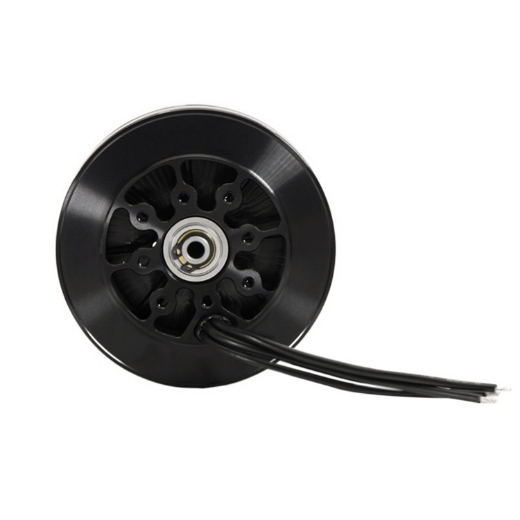

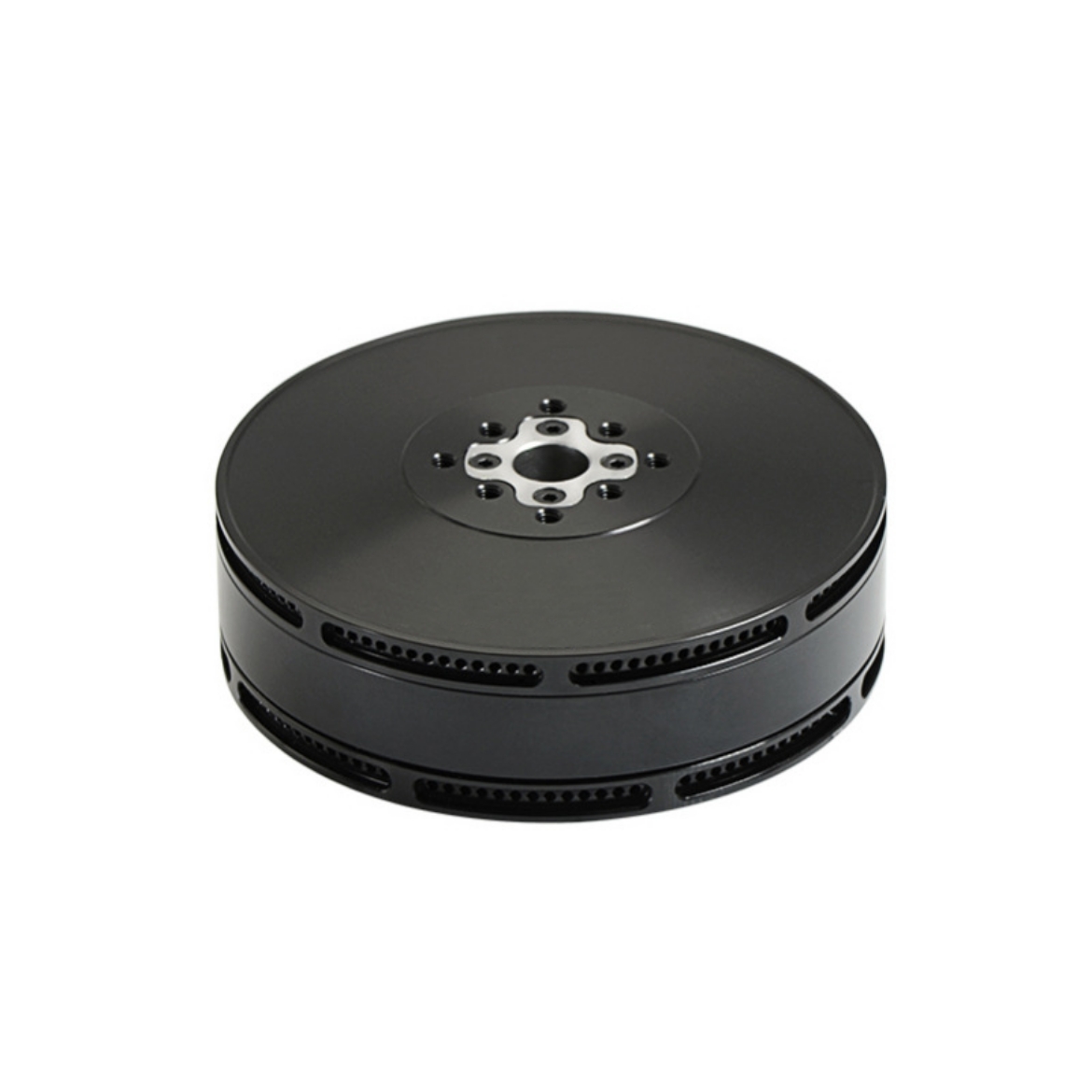

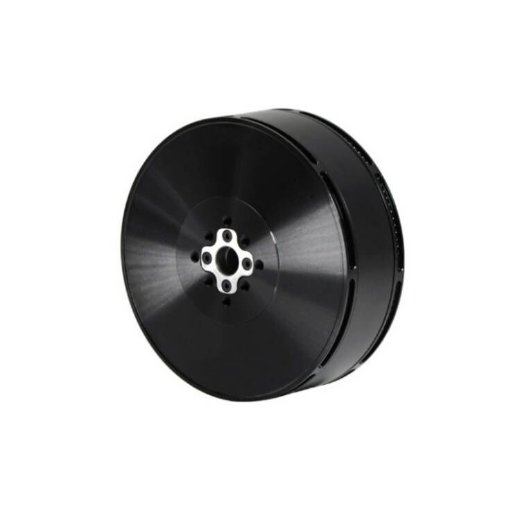

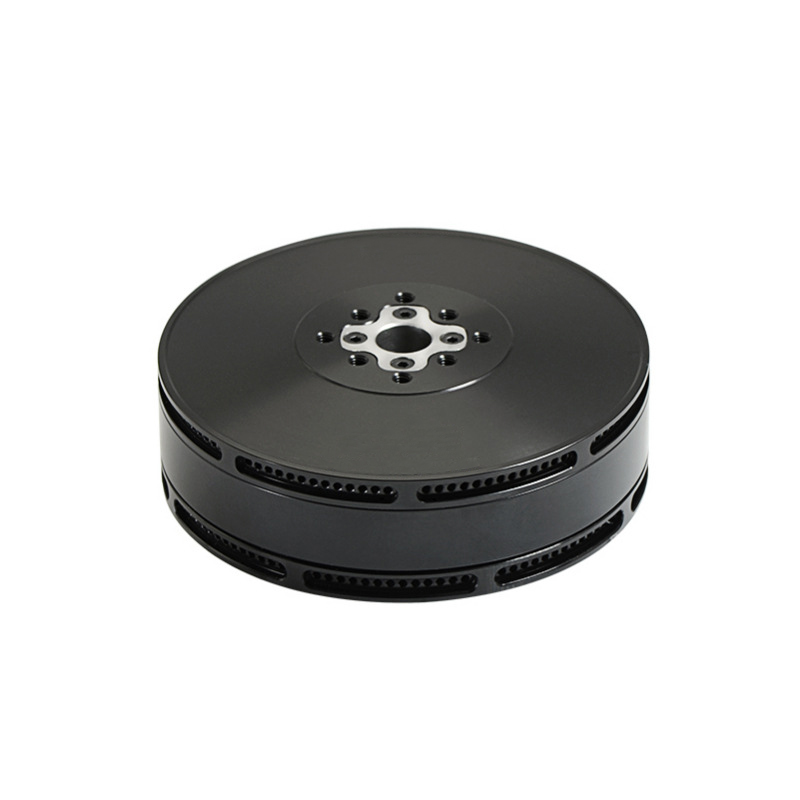

Get a 170KV brushless motor for the multirotor drone. It is also a quadcopter motor. 90KV/110KV/135KV heavy lift drone motors are available. 12S/6S Brushless drone motor works with a 26~29 inch propeller that can make your drone fly. BLDC motors are widely used due to their lightweight, high efficiency, wide speed range and strong torque capability.
Specifications
| Model |
BLDC-EOLO-7208 |
| Motor KV |
90 |
110 |
135 |
170 |
| Number of Stator Slots |
36 |
36 |
36 |
36 |
| Number of Rotor Poles |
42 |
42 |
42 |
42 |
| Motor Size |
φ79.0*27.0mm |
φ79.0*27.0mm |
φ79.0*27.0mm |
φ79.0*27.0mm |
| Shaft Diameter |
12.0mm |
12.0mm |
12.0mm |
12.0mm |
| Motor Silicone Wire |
20AWG 100mm |
20AWG 100mm |
20AWG 100mm |
20AWG 100mm |
| Phase-to-Phase Internal Resistance |
253mΩ |
173mΩ |
125mΩ |
76mΩ |
| Motor Weight (Including Wires) |
236g |
240g |
237g |
240g |
| Rated Voltage (Lipo) |
12S |
12S |
6S |
6S |
| No-Load Current |
0.4A/10V |
0.5A/10V |
0.6A/10V |
0.8A/10V |
| Maximum Continuous Power |
1150W |
1500W |
750W |
950W |
| Maximum Continuous Current |
23A/30s |
30A/30s |
30A/30s |
38A/30s |
| Recommended ESC |
40A |
40A |
50A |
50A |
| Recommended Propeller |
CN26*8/CN28*9.5/C28*9.5/CL28*9.5 |
CN26*8/CN28*9.5/C28*9.5 |
C28*9.5/CN28*9.5 |
C28*9.5/CL28*9.5/CN28*9.5 |
Features
- 90KV/110KV/135KV/170KV brushless motor is high efficiency and stable, suitable for heavy lift drones.
- It adopts an IP54 motor structure design to prevent dust and rain.
- Lightweight brushless drone motor has a manual winding, the ultimate full slots rate, and a new optimized magnetic circuit to make the power stronger.
Dimensions (Unit: mm)
Tips: Why do drones use 170KV brushless motors?
Drones use 170KV brushless DC motors because they produce higher torque for the same weight compared to brushed motors. Or the thrust-to-weight ratio is more like a brushless motor than a brushed motor.
