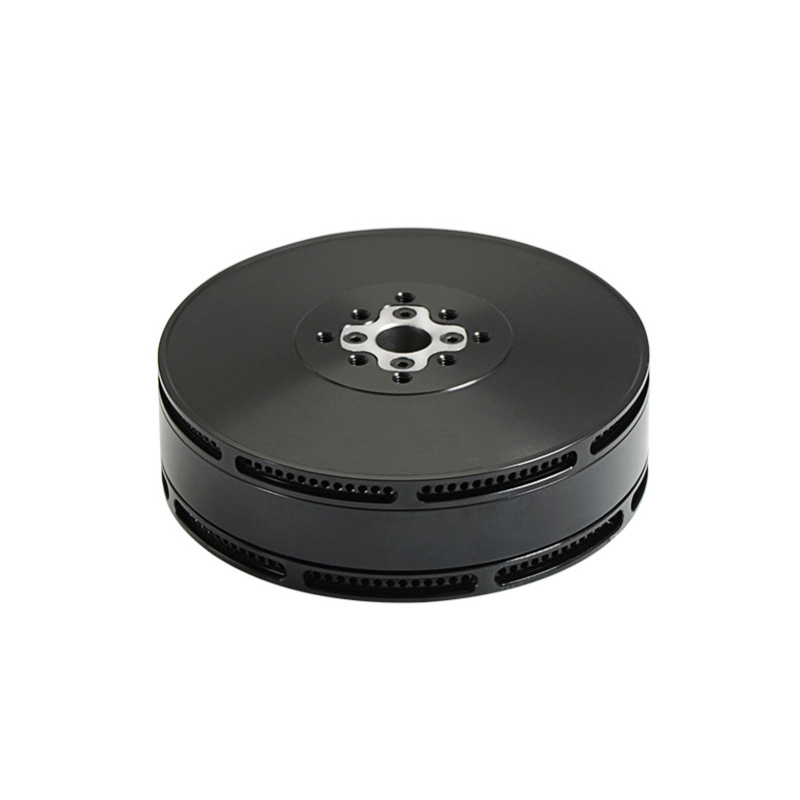

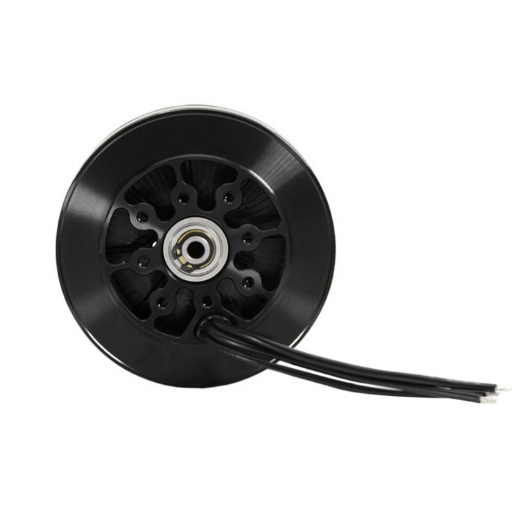

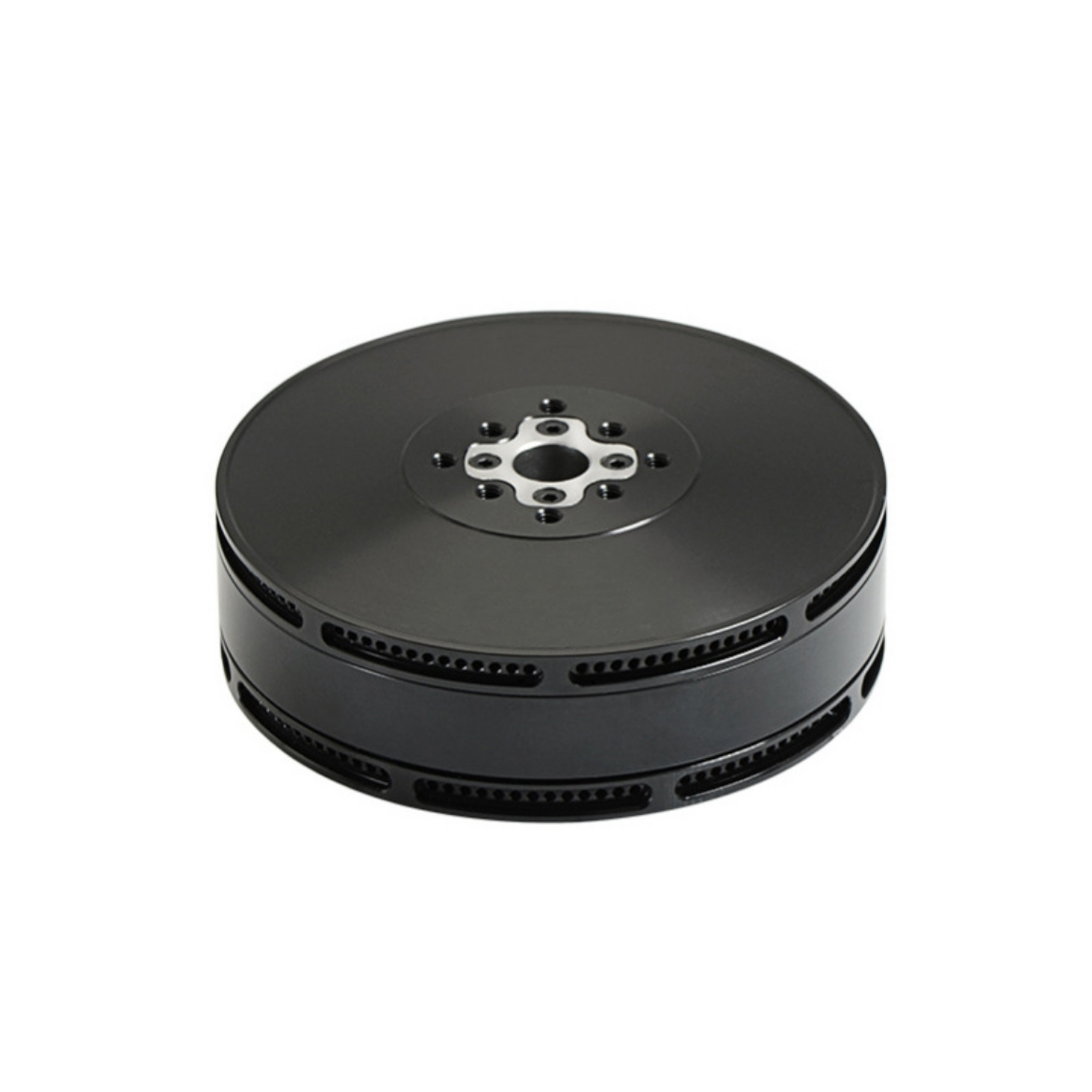

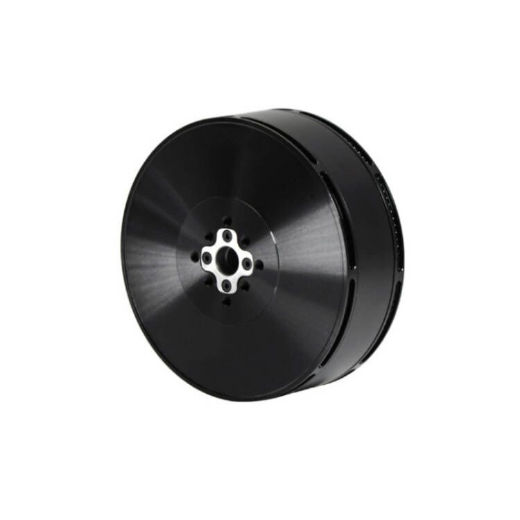

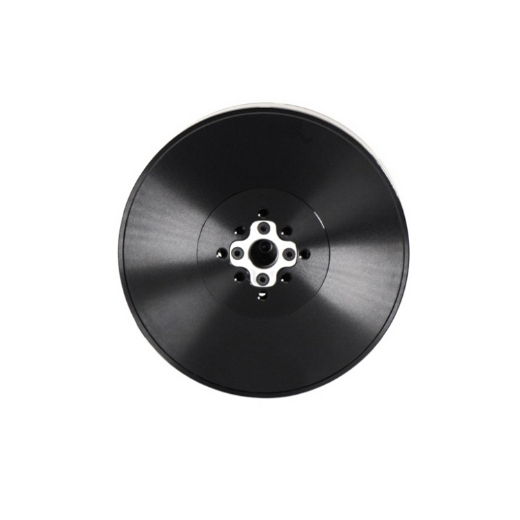

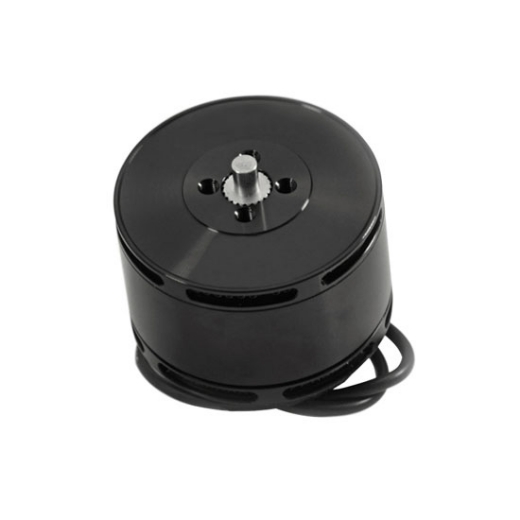

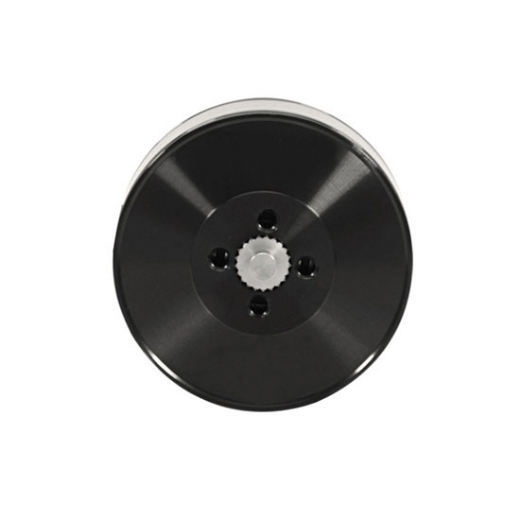

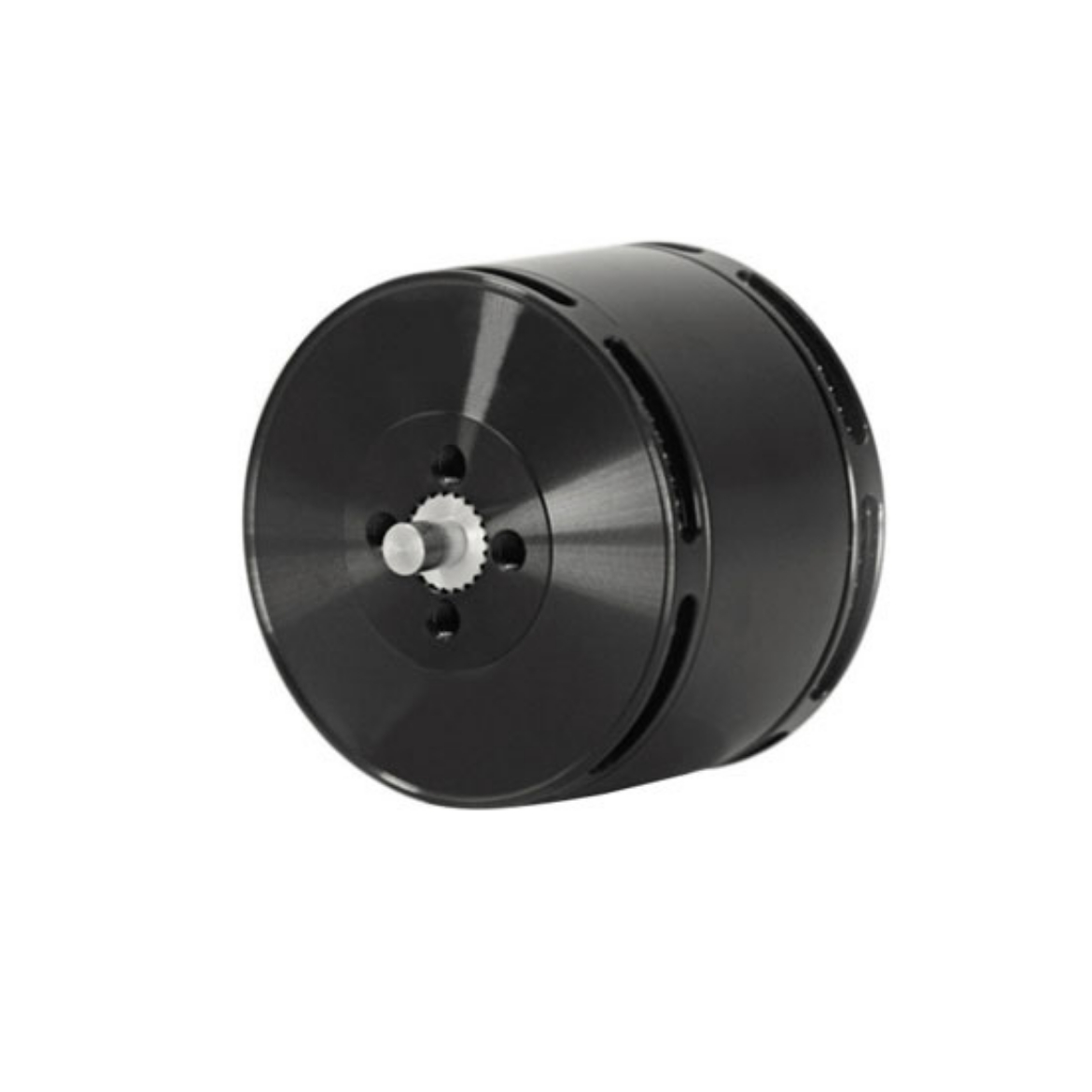

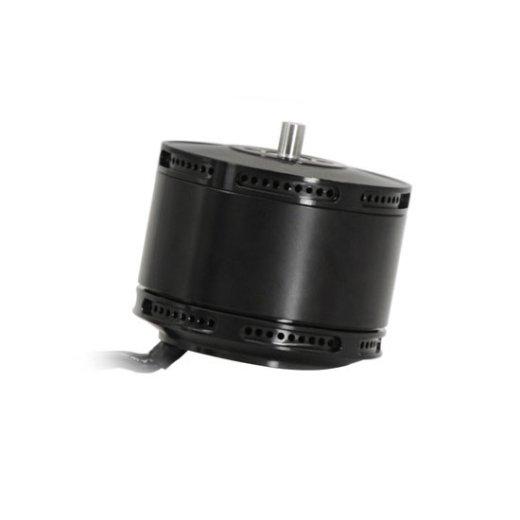

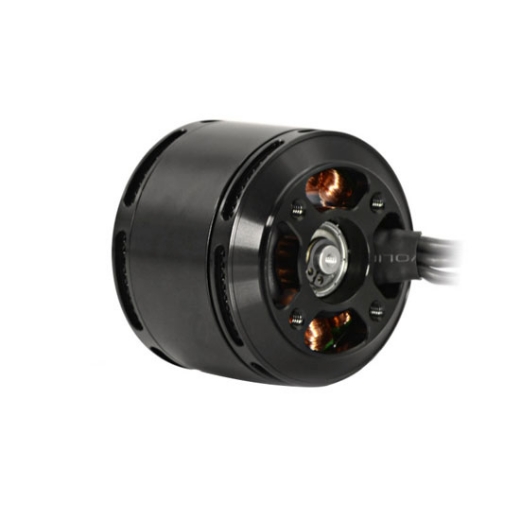

400KV Brushless Heavy Lift Drone Motor
400KV Brushless Heavy Lift Drone Motor 400KV Brushless Heavy Lift Drone Motor 400KV Brushless Heavy Lift Drone Motor 400KV Brushless Heavy Lift Drone Motor

400KV Brushless Heavy Lift Drone Motor

$196.71
| 2 review(s) | Write your review
Good price 6S brushless motor for drone. It is also a heavy lift drone motor, designed for 14/15/16 inch propellers. 400KV BLDC motor is suitable for position and speed control due to their lightweight, high efficiency, wide speed range and strong torque capability.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-HLDM-400
increase decrease
  • Overview
  • Contact Us

The provided brushless drone comes with 6S rated voltage. The 400KV brushless motor is to spin a 14/15/16 inch propeller and generate the thrust that your drone can fly, suitable for various working environments.

Specifications

Model: BLDC-EOLO-3515
Motor KV: 400
Number of Stator Slots: 12
Number Of Rotor Poles: 14
Motor Internal Resistance: 87mΩ
Motor Size: φ41.9*39.0mm

Shaft Diameter: 4.0mm
Stator Outer Diameter: 41.9mm
Stator Thickness: 15mm
Motor Silicone Wire: 20AWG 600mm
Weight (Including Wire): 170g
Rated Voltage (Lipo): 6S

No-Load Current: 0.6A/10V
Max Continuous Power: 700W
Max Continuous Current: 28A/30s
Recommended ESC: 50A
Recommended Propeller: C15*5.5/CN13*5
Recommended Take-off Weight of Single Axis: ≤1200g

Features

  • 400KV brushless motor is high efficiency and stable, suitable for heavy lift drones.
  • It adopts an IP54 motor structure design to prevent dust and rain.
  • Lightweight brushless drone motor has a manual winding, the ultimate full slots rate, and a new optimized magnetic circuit to make the power stronger.

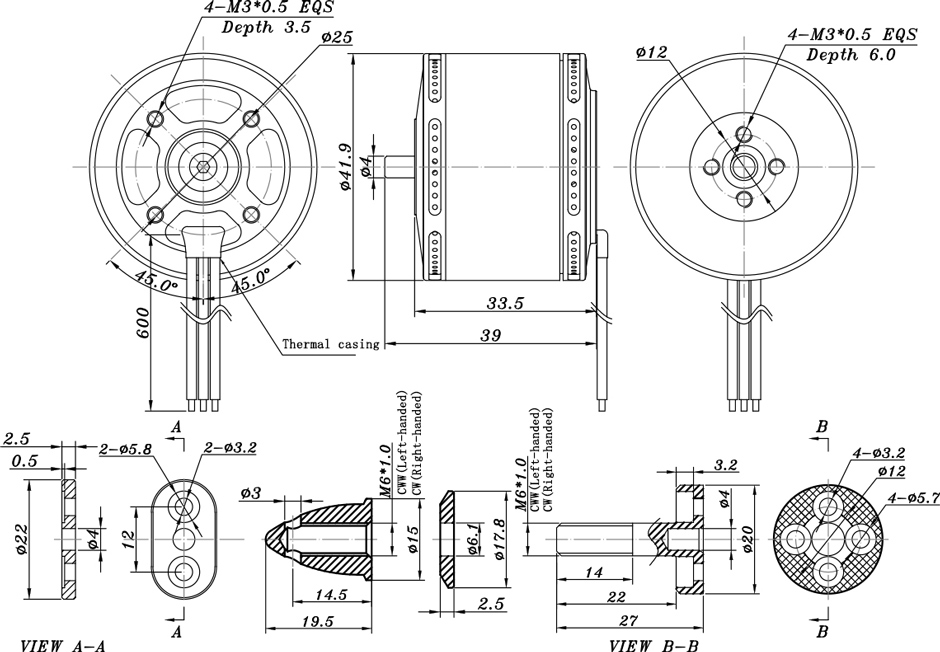

Dimensions (Unit: mm)

400KV Brushless Motor for Heavy Lifting Drone

Tips: Which Motor is Used in Heavy Lift Drones?

Motors used in drones tend to be electric brushless DC motors because they are more efficient than brushed motors. Brushless motors use a non-contact method to transfer current from the commutator to the rotor, which means less energy is lost through friction.
