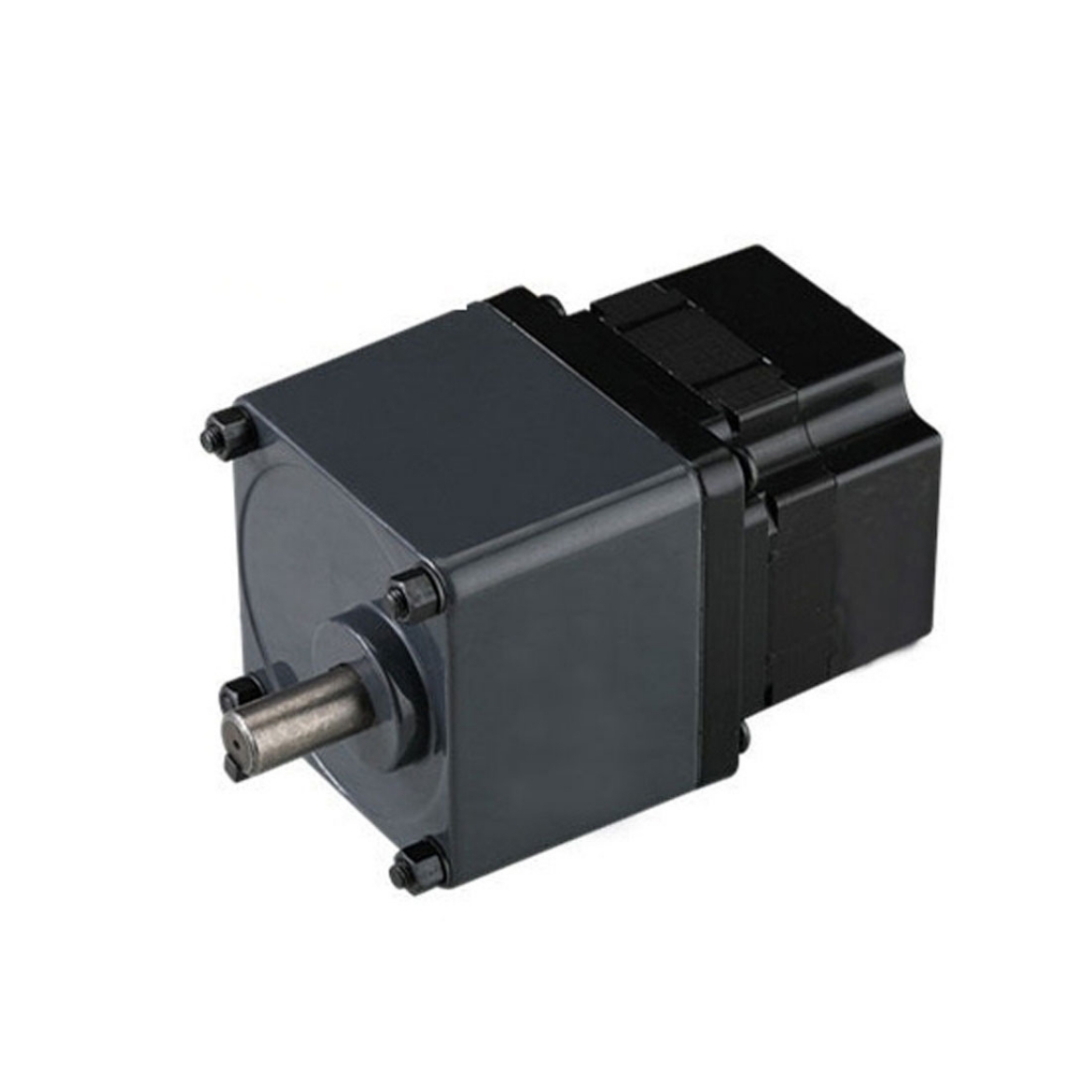

150W Brushless DC Gear Motor, 12V/24V/48V

150W Brushless DC Gear Motor, 12V/24V/48V

$193.25
| Write your review
The hot-selling brushless dc gear motor with a power of 150 Watts, rated voltage of 12V, 24V, or 48V, gear ratios ranging from 3:1 to 200:1, rated speed of 3000 rpm and peak torque up to 1.43 Nm, is ideal for applications in medical machinery, mining equipment, hydraulic equipment, and CNC machine tools.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-GEAR-B150W
*
*
*
*
increase decrease
  • Overview
  • Contact Us

Low-cost 150W high torque geared motor with rated torque 0.48 Nm, rated current 15.63A at 12V, 7.81A at 24V, 3.91A at 48V, no load speed up to 3300 rpm, brushless gearmotors are reliable and of simplified design and space-saving.

Basic Specifications


Model BLDC-D5BLD150-12 BLDC-D5BLD150-24 BLDC-D5BLD150-48
Voltage 12V 24V 48V
Rated Current 15.63A 7.81A 3.91A
No-load Current < 5.2A < 3.13A < 1.61A
Compatible Driver Model BLD-750 BLD-300B
Power 150W
Rated Speed 3000 rpm
No-load Speed 3300 rpm
Rated Torque 0.48 N.m
Peak Torque 1.43 N.m
Weight 3 kg
Protection Grade IP54
Motor Lead Length 300mm
Temperature 0~50℃
Gearbox Model 2GN□K Enter the gear ratio into the box (□) within the model name
Gear Ratio 3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200


The allowable torque with a gearbox

Gear Ratio Speed (r/min) Allowable Torque (N.m) Allowable Torque (kgf.cm)
3 1000 1.16 11.6
5 600 1.93 19.34
7.5 400 2.9 29.01
10 300 2.87 38.68
12.5 240 4.36 43.57
15 200 5.23 52.29
18 167 6.27 62.74
20 150 6.3 63.03
25 120 7.88 78.79
30 100 9.46 94.55
36 83.33 11.35 113.5
40 75 12.61 126.1
50 60 15.76 157.6
60 50 18.91 189.1
75 40 20 200
90 33 20 200
100 30 20 200
120 25 20 200
150 20 20 200
180 17 20 200
200 15 20 200



Line Define

Power Wire Hall Wire
Red U Red 5V
Yellow V Black GND
Black W Hu Blue
Hv Green
Hw White

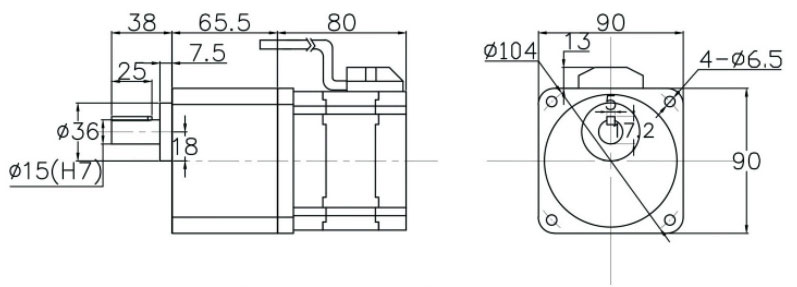

DC Gear Motor Dimension (Unit=mm)

150W brushless gear motor dimension

Applications

DC gear motor applications

What is the use of a small brushless DC gear motor?

  • Reducing the speed, the desired speed, usually called the output speed, is achieved by means of a gearbox.
  • Increase the torque, the slower the output speed, the higher the torque, and vice versa under the same power conditions.
  • Changing the direction of transmission, for example, we can use two sector gears to transmit the force vertically to the other rotating shaft.
  • Clutch function
