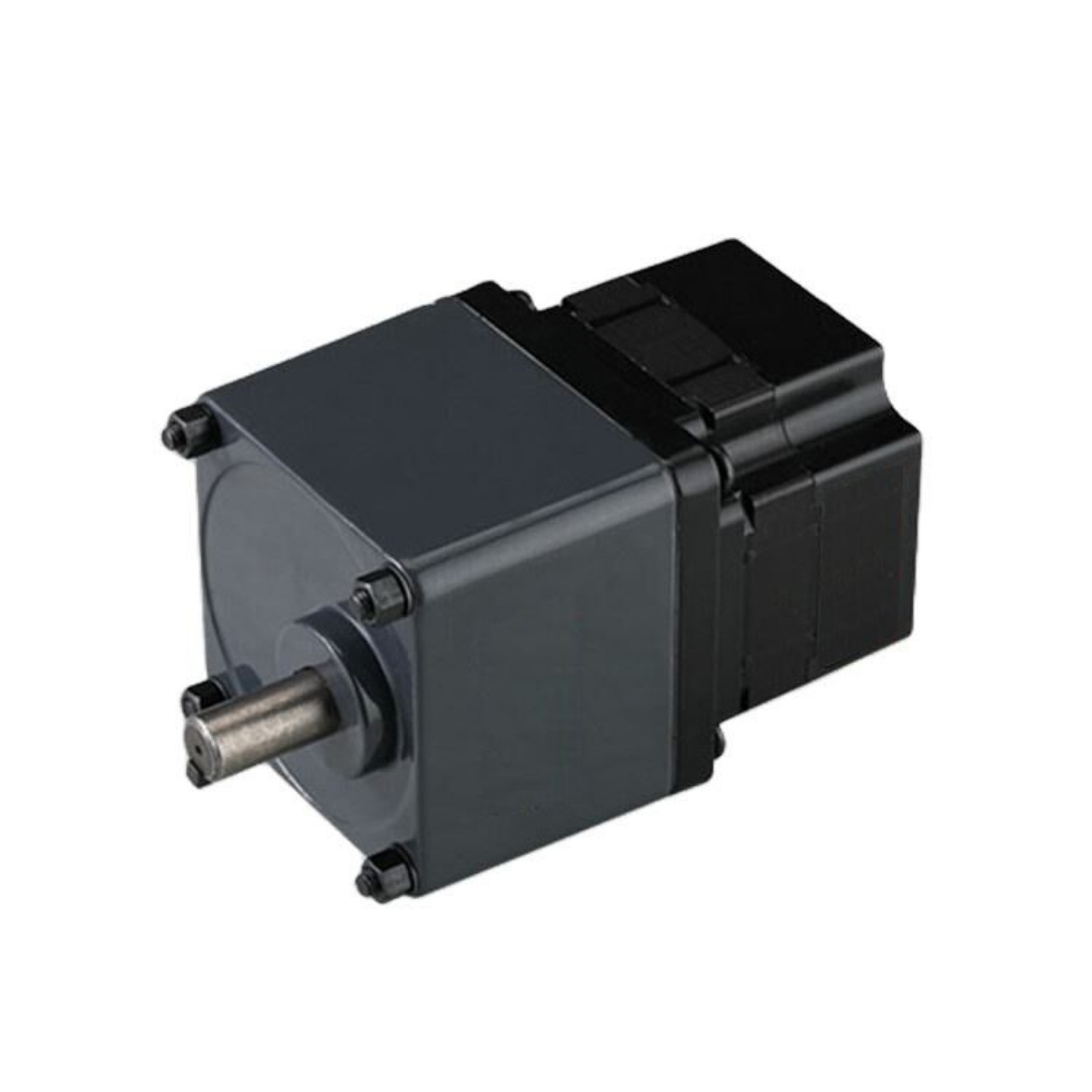

300W Brushless DC Gear Motor, 12V/24V/48V

300W Brushless DC Gear Motor, 12V/24V/48V

$299.89
| Write your review
The fractional horsepower brushless dc gear motor runs at a rated speed of 3000 rpm, 12V/24V/48V voltage options, rated torque of 0.96 Nm, peak torque at 2.87 Nm, 300W brushless dc gear motor is commonly used in lifts and medical tables, power seats, and other automobiles.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-GEAR-B300W
*
*
*
*
increase decrease
  • Overview
  • Contact Us

DC geared motors with the controller, gear ratios from 3:1 to 200:1 available, rated at 3000 rpm, and designed to operate at 12V, 24V or 48V. The low-cost DC geared motor is a perfect solution to meet your application requirements.


Basic Specifications


Model BLDC-D5BLD300-12 BLDC-D5BLD300-24 BLDC-D5BLD300-48
Voltage 12V 24V 48V
Rated Current 31.25A 15.63A 7.81A
No-load Current <7.2A < 6.13A < 4.61A
Compatible Driver Model BLD-50 BLD-750 BLD-300B
Power 300W
Rated Speed 3000 rpm
No-load Speed 3300 rpm
Rated Torque 0.96 N.m
Peak Torque 2.87 N.m
Weight 3 kg
Protection Grade IP54
Motor Lead Length 300mm
Temperature 0~50℃
Gearbox Model 2GN□K Enter the gear ratio into the box (□) within the model name
Gear Ratio 3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200


The allowable torque with a gearbox

Gear Ratio Speed (r/min) Allowable Torque (N.m) Allowable Torque (kgf.cm)
3 1000 2.32 23.21
5 600 3.87 38.68
7.5 400 5.8 58.02
10 300 7.74 77.36
12.5 240 8.71 87.14
15 200 10.46 104.6
18 167 12.55 125.5
20 150 12.61 126.1
25 120 15.76 157.6
30 100 18.91 189.1
36 83.33 20 200
40 75 20 200
50 60 20 200
60 50 20 200
75 40 20 200
90 33 20 200
100 30 20 200
120 25 20 200
150 20 20 200
180 17 20 200
200 15 20 200



Line Define

Power Wire Hall Wire
Red U Red 5V
Yellow V Black GND
Black W Hu Blue
Hv Green
Hw White

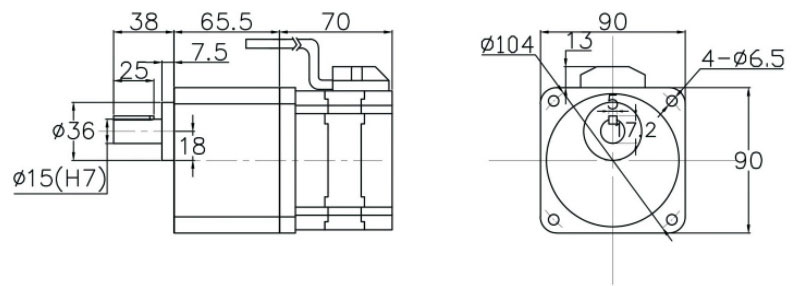

DC Gear Motor Dimension (Unit=mm)

300W gear motor dimension

Applications

DC gear motor applications

Tips: How to calculate the torque of a 300W brushless DC geared motor?

Gear reducer torque = 9550 * Motor power / Motor input rpm rated power * Ratio * Gear reducer efficiency. The calculation above is the torque equation. Motor power = Torque ÷ 9550 × Motor input speed at rated power / Ratio / Usage factor.
