50W Brushless DC Gear Motor, 12V/24V

50W Brushless DC Gear Motor, 12V/24V

$155.03
| Write your review
Buy low-cost small brushless dc gear motor online, speed ratio optional, rated torque 0.16 Nm at 12V, rated torque 0.18 Nm at 24V, rated speed 3000 rpm, 50W DC gear motor with strong overload capacity, widely used in chemical, steel, cement, printing, sugar, food, etc.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-GEAR-B50W
*
*
*
*
increase decrease
  • Overview
  • Contact Us

High torque 12V/24V  brushless dc gear motor for sale, 500 watts power, the gear ratio can be selected from 3:1 to 200:1, peak torque up to 0.48 Nm, rated speed 3000 rpm, DC gear motor is adaptable to the environment, can work continuously in harsh environments such as corrosion, humidity, etc.


Basic Specifications

Model: BLDC-D2BLD50
Matched Controller Model: BLD-300B (12V), BLD-120A (24V)
Rated Power: 50W
Weight: 2  kg
Rated Voltage: 12V/24V

Rated Speed: 3000 rpm
No-load Speed: 3300 rpm
Rated Current: 3.13A (12V), 1.56A (24V)
Rated Torque: 0.16 Nm
Peak Torque: 0.48 Nm
Motor Lead Length:
300 mm

Temperature: 0~50℃
Protection Grade: IP54
Gearbox Model: 2GN□K, Enter the gear ratio into the box (□) within the model name
No-load Current: <5.21A (12V), <2.6A (24V)
Gear Ratio: 3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.


The allowable torque with a gearbox

Gear Ratio Speed (r/min) Allowable Torque (N.m) Allowable Torque (kgf.cm)
3 1000 0.39 3.86
5 600 0.64 6.44
7.5 400 0.97 9.66
10 300 1.29 12.88
12.5 240 1.61 16.1
15 200 1.93 19.32
18 167 2.32 23.18
20 150 2.32 23.21
25 120 2.9 29.02
30 100 3 30
36 83.33 3 30
40 75 3 30
50 60 3 30
60 50 3 30
75 40 3 30
90 33 3 30
100 30 3 30
120 25 3 30
150 20 3 30
180 17 3 30
200 15 3 30



Line Define

Power Wire Hall Wire
Red U Red 5V
Yellow V Black GND
Black W Hu Blue
Hv Green
Hw White



DC Gear Motor Dimension (Unit=mm)

50W gear motor dimension


Gearbox Dimension (Unit: mm)

50W gearbox dimension

Features

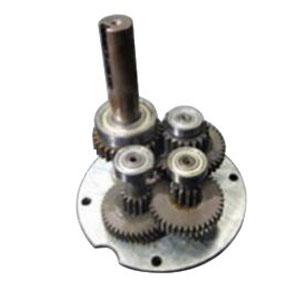

DC gear motor aluminum flange DC gear motor stator Right-angle hollow reducer
Aluminum flange, double ball bearing axial load capacity, low friction, and ball bearing sealing glaze. The stator and rotor use a pure copper coil, with strong electrical conductivity so that the motor force distance increased. The gear reducer adopts a right-angle hollow reducer, with no sprocket, chain guard, and no bouncing teeth.



Applications

DC gear motor applications
Tips: Can I run a 24-volt DC motor on 12 volts?

If you run a 12-volt motor with a 24-volt battery, the stall current will be too high without a controller to limit it. Therefore, if you choose a controller that is appropriate for the motor you are using, you can usually run a 12-volt motor on a 24-volt battery with no effect except that the full speed will be doubled.
