24V 200W Brushless DC Motor, 0.64 Nm, 3000 rpm, 10.4A
24V 200W Brushless DC Motor, 0.64 Nm, 3000 rpm, 10.4A 24V 200W Brushless DC Motor, 0.64 Nm, 3000 rpm, 10.4A 24V 200W Brushless DC Motor, 0.64 Nm, 3000 rpm, 10.4A

24V 200W Brushless DC Motor, 0.64 Nm, 3000 rpm, 10.4A

$245.39
| 1 review(s) | Write your review
High-power BLDC motor with cheap price. 24V brushless DC motor with 200 watts rated power, rated speed 3000 rpm, 10.4A rated current, and rated torque 0.64Nm. Small 3-phase brushless DC electric motor with strong load capacity and high-temperature resistance.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-24V-200W
*
*
*
*
*
increase decrease
  • Overview
  • Document
  • Reviews
Overview

High torque 200W 3000 rpm brushless DC motor with 24V rated voltage, IP54 protection grade, max. torque can up to 1.91 Nm. High speed BLDC motor is widely used in new energy electric cars, renewable energy systems, and compact occasions.

Basic Specifications

Model: BLDC-D5BLD200
Matched Controller Model: BLD-750
Rated Power: 200W
Rated Voltage: 24V DC
Rated Current: 10.4A
Phase: 3 phase

Rated Torque: 0.64 Nm
Max. Torque: 1.91Nm
Rated Speed: 3000 rpm for standard (or 2000 rpm when matching the worm gearbox)
No-load Speed: 3300 rpm
No-load Current: <4.13A
Square Flange Size: 86 mm

Working Efficiency: 85%
Insulation Grade: F
Protection Grade: IP54
Motor Lead Length: 1 meter
Certificate: CE, RoHS, ISO
Weight: 3 kg

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

Features

  • Stable Speed Control: 24V brushless motor continues to set speed and a feedback signal is compared from the speed of the motor to adjust the voltage applied to the motor; therefore, even if the load change, still can set the speed from slow instantaneous adjustment to, and in order to stabilize the running speed.
  • Thin, High Power: 3 phase DC motor adopts a permanent magnet brushless motor rotor, thus realizing the thin and high power.
  • Wide Speed Control Range: The speed control range of 200W brushless motor than speed AC motor and inverter wider, because unlike the speed AC motor that at low speed have restrictions on the use of torque, so there is no brush motor is suitable for from low speed to high speed, all require the use of a certain torque.
  • Contribute To Energy Saving: The rotor of the brushless motor is used for the permanent magnet, which can reduce the two-loss of the rotor, so the power consumption is reduced by more than 20% compared with the three-phase induction motor with variable frequency control, which is helpful for the energy saving of the device.
  • Equipped With Protection Function: The high-speed BLDC motor helps to protect the safety of the equipment system.

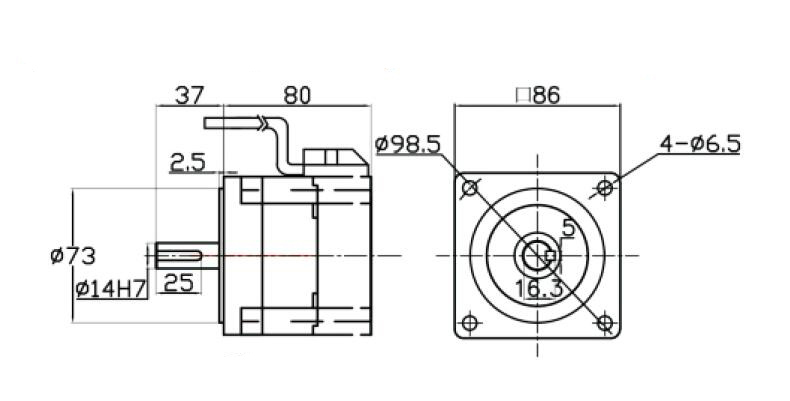

Dimension (Unit: mm)

24V 200W BLDC motor dimension

Speed - Torque Curve

200W BLDC motor torque speed curve

  • Instantaneous maximum torque line
    The maximum torque momentarily impacts the load when the motor is started.
    Beyond this torque, the over-current protection of the driver will cause the motor to stop.
  • Short-time operation area
    The motor can run for a short time within this torque range at different speeds.
    If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
  • Rated operating torque line
    The rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
  • Continuous operating area
    When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Line Define

Power Wire Hall Wire
Red U Red 5V
Yellow V Black GND
Black W Blue Hu
Green Hv
White Hw



Details

200W BLDC motor detail



Applications:

High-torque brushless DC motors are widely used in our lives, such as electric bicycles, inverter air conditioners, washing machines, drones, automobiles, CNC machine tools, polishing and grinding equipment, packaging machinery, tools, turnstiles, industrial control, medical machinery, automation to, AGV trolley, aerospace and intelligent storage equipment, etc.

BLDC applications

Tips: Can a 24V BLDC motor run on AC?

We already know that in a 24V BLDC motor the field winding has very less resistance than a DC shunt motor as the field is connected in series with the armature winding. So if we give AC supply on a DC Motor it will run perfectly. In fact, DC Series can run on both AC and DC supplies.

Document

Download PDFBLD-750 Controller Specs Datasheet PDF

Download PDFBrushless BLDC Motors Catalogs

Write your own review
*
*
Reviews
A great replacement for my 24V brushless motor
I replaced my 12V motors as soon as I received my 24V brushless motors, they have been in use for so long but they have never gotten hot and are indeed a great product with no problems.
Simon | 9/27/2022 11:11 PM
Was this review helpful? Yes No (0/0)
