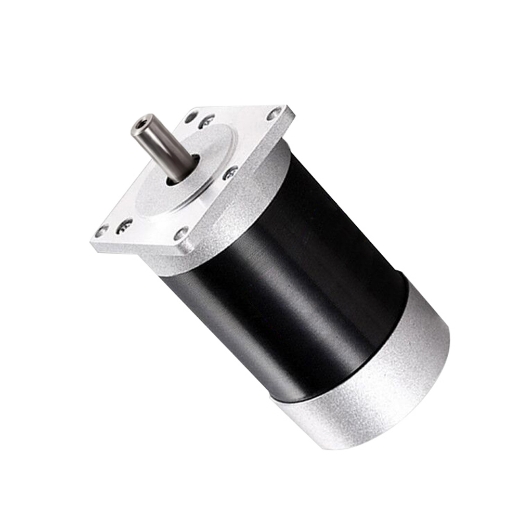

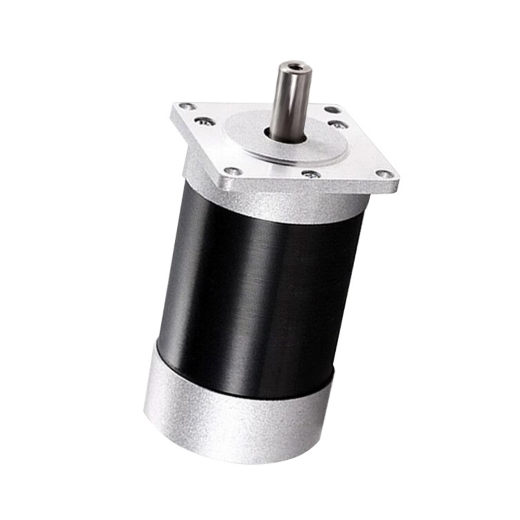

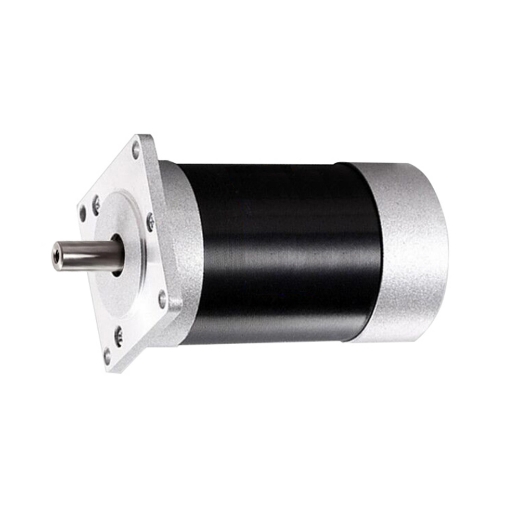

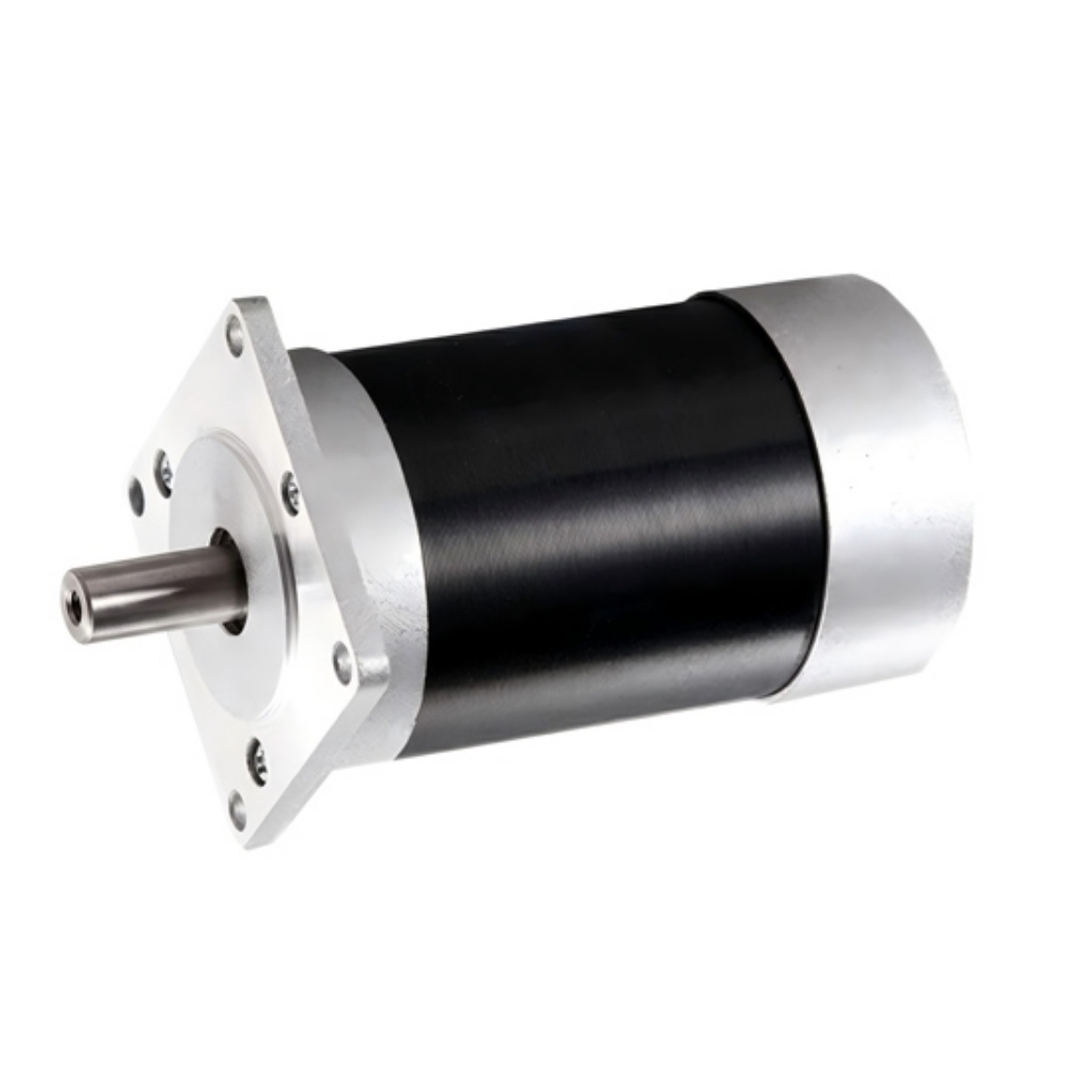

Lower cost 50W BLDC motor for sale online. 3-phase brushless DC motor featuring no-load speed 3300 rpm, with lower noise and higher start torque. High torque BLDC motors have the advantages of smooth operation, low interference, long life, and low maintenance costs.
Basic Specifications
Model: BLDC-D2BLD50-24A-30S
Matched Controller Model: BLD-120A
Rated Power: 50W
Rated Voltage: 24V DC
Rated Current: 2.6A
Phase: 3 phase
Rated Torque: 0.16 Nm
Max. Torque: 0.48 Nm
Rated Speed: 3000 rpm
No-load Speed: 3300 rpm
No-load Current: ＜0.4A
Square Flange Size: 60 mm
Working Efficiency: 85%
Insulation Grade: F
Protection Grade: IP54
Motor Lead Length: 1 meter
Certificate: CE, RoHS, ISO
Weight: 2 kg
Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.
Features
- Stable Speed Control: 24V brushless motor continues to set speed and a feedback signal is compared from the speed of the motor to adjust the voltage applied to the motor; therefore, even if the load change, still can set the speed from slow instantaneous adjustment to, and in order to stabilize the running speed.
- Thin, High Power: 3 phase DC motor adopts a permanent magnet brushless motor rotor, thus realizing the thin and high power.
- Wide Speed Control Range: The speed control range of 500W brushless motor than speed AC motor and inverter wider, because unlike the speed AC motor that at low speed have restrictions on the use of torque, so there is no brush motor is suitable for from low speed to high speed, all require the use of a certain torque.
- Contribute To Energy Saving: The rotor of the brushless motor is used for the permanent magnet, which can reduce the two-loss of the rotor, so the power consumption is reduced by more than 20% compared with the three-phase induction motor with variable frequency control, which is helpful for the energy saving of the device.
- Equipped With Protection Function: The high-speed BLDC motor helps to protect the safety of the equipment system.
Dimension (Unit: mm)
Speed - Torque Curve
- Instantaneous maximum torque line
The maximum torque momentarily impacts the load when the motor is started.
Beyond this torque, the over-current protection of the driver will cause the motor to stop.
- Short-time operation area
The motor can run for a short time within this torque range at different speeds.
If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
- Rated operating torque line
The rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
- Continuous operating area
When the motor rotates at different speeds, it runs continuously in this corresponding zone.
Line Define
| Power Wire |
Hall Wire |
| Red |
U |
Red |
5V |
| Yellow |
V |
Black |
GND |
| Black |
W |
Blue |
Hu |
| Green |
Hv |
| White |
Hw |
Details
Applications:
High-torque brushless DC motors are widely used in our lives, such as electric bicycles, inverter air conditioners, washing machines, drones, automobiles, CNC machine tools, polishing and grinding equipment, packaging machinery, tools, turnstiles, industrial control, medical machinery, automation to, AGV trolley, aerospace and intelligent storage equipment, etc.
Tips: Can a 12V battery run a 24V BLDC motor?
Either go 12V or add another battery and run the rated 24V. It won't hurt your motor. Most newer ones will not even turn over because the circuit board senses less than 22 volts (dead 24v system). Old ones will turn over but you will have half power.
