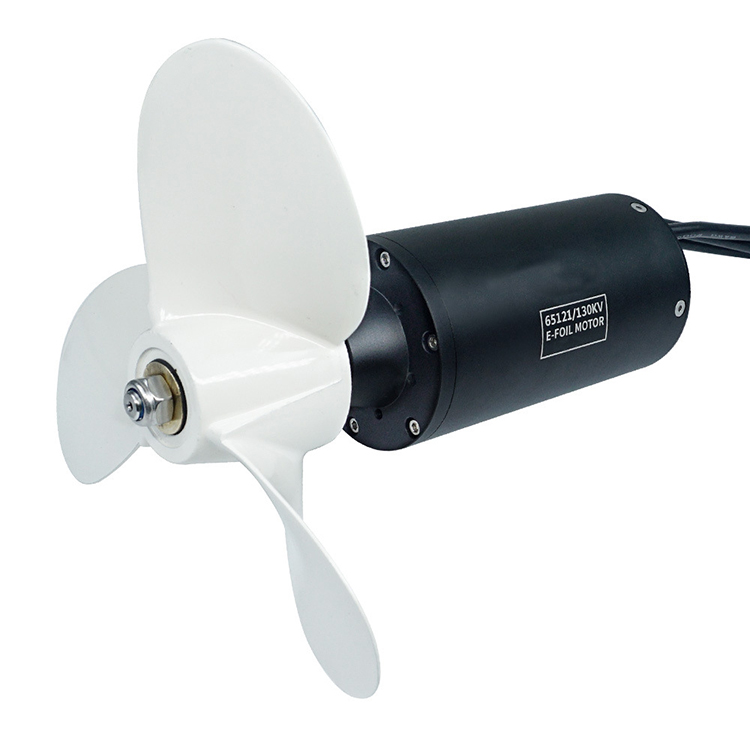

High-quality IP68 waterproof brushless DC motor for sale, with power 3.7 kW, power supply batteries 6-20S, rotation speed 130KV. Sensorless waterproof bldc motor is suitable for underwater thrusters, surfboards and boats.
Specification
Model: BLDC-65121
Max Power: 3700W
Continuous Rated Power: 2000W
Rotation Speed KV (RPM/V): 130KV
Input Voltage Range: 6-20S
Motor Wire: 8 AWG*500 mm
Max. Torque: 5.5 Nm
Max. Current: 100A
Insulation Voltage: AC500V/ 1MA/ 3S
Connection Plug: 8mm plug
Waterproof Grade: IP68
Internal Structure: 18N/ 6P
Axis: ∅12*M8
Motor Dimension: 65*121 mm
Weight: 1.62 kg

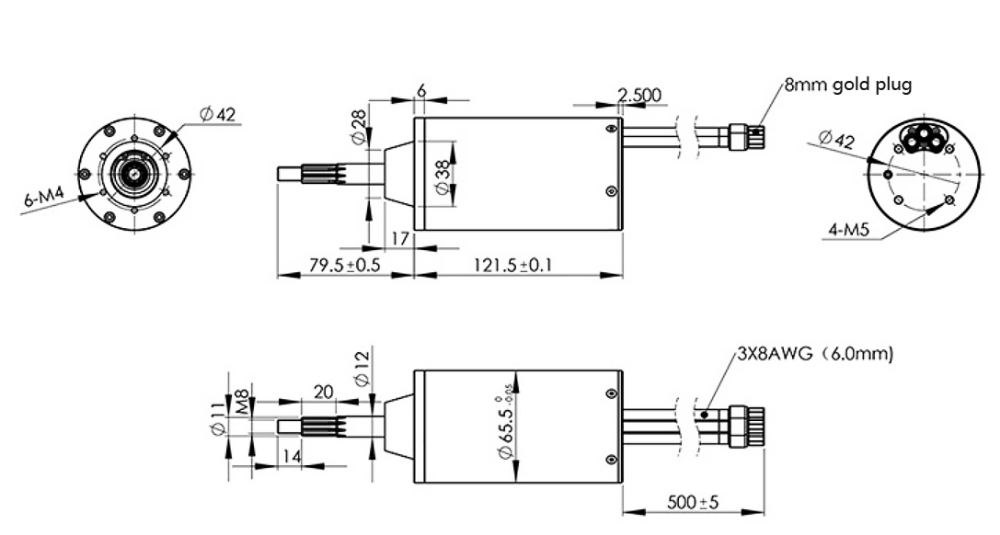

Dimensions (mm)
ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor
- The speed of the BLDC motor does not exceed the speed of ESC, it can be matched and used.
- Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
- The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
- If the maximum speed of BLDC motor exceeds the speed of the electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of a brushless DC motor.
ESC (Electronic Speed Controller) Specification
| Model |
Current Value |
Number of Batteries (Input Voltage) |
| FSESC 4.12 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
| FSESC 4.20 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
| VESC6.6 integrated switch dual drive version |
1-channel 100A continuous, 2-channel 200A continuous
1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
| VESC6.6 integrated switch dual drive version |
1-channel 100A continuous, 2-channel 200A continuous
1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
| FSESC6.7 VESC6.6 single drive integrated |
Continuous 70A, peak 200A |
3S-12S (8V-60V) |
| VESC4 dual drive integration |
50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel |
3S-12S (8V-60V) |
| ODESC3.6 single drive/dual drive |
50A continuous 1-channel, peak 120A 1-channel |
3S-12S (8V-60V) |
| VESC6 dual drive |
1-channel 100A continuous, 2-channel 200A continuous
1-channel peak 400A, 2-channel total peak 800A |
3S-12S (8V-60V) |
| Single drive V6 75200 * |
Continuous 200A |
3S-12S (8V-60V) |
| Single drive VESC6 waterproof version |
Continuous 60A, peak 150A |
3S-12S (8V-60V) |
Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

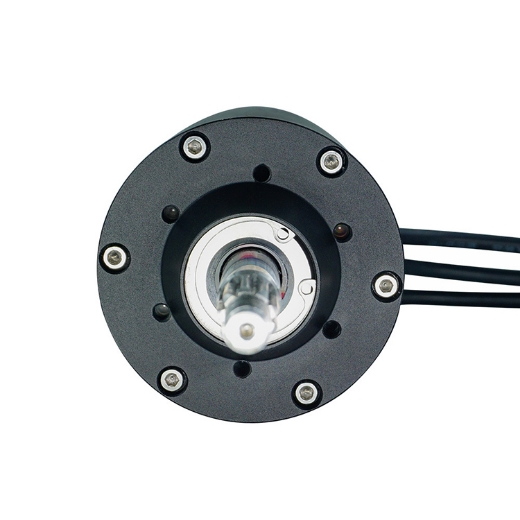

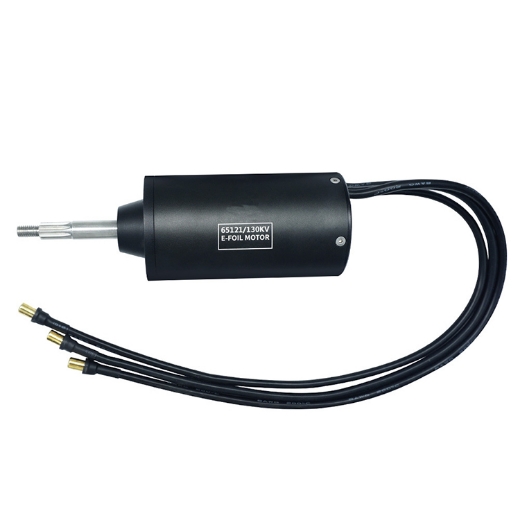

Details
Tips: What is a sensorless BLDC motor?
A sensorless brushless DC motor (sensorless BLDC motor) is quite simply a brushless DC motor without hall effect sensors. Hall effect sensors are sensors that are built into sensored brushless motors which are used to tell the brushless motor controller exactly where the rotor position is.
