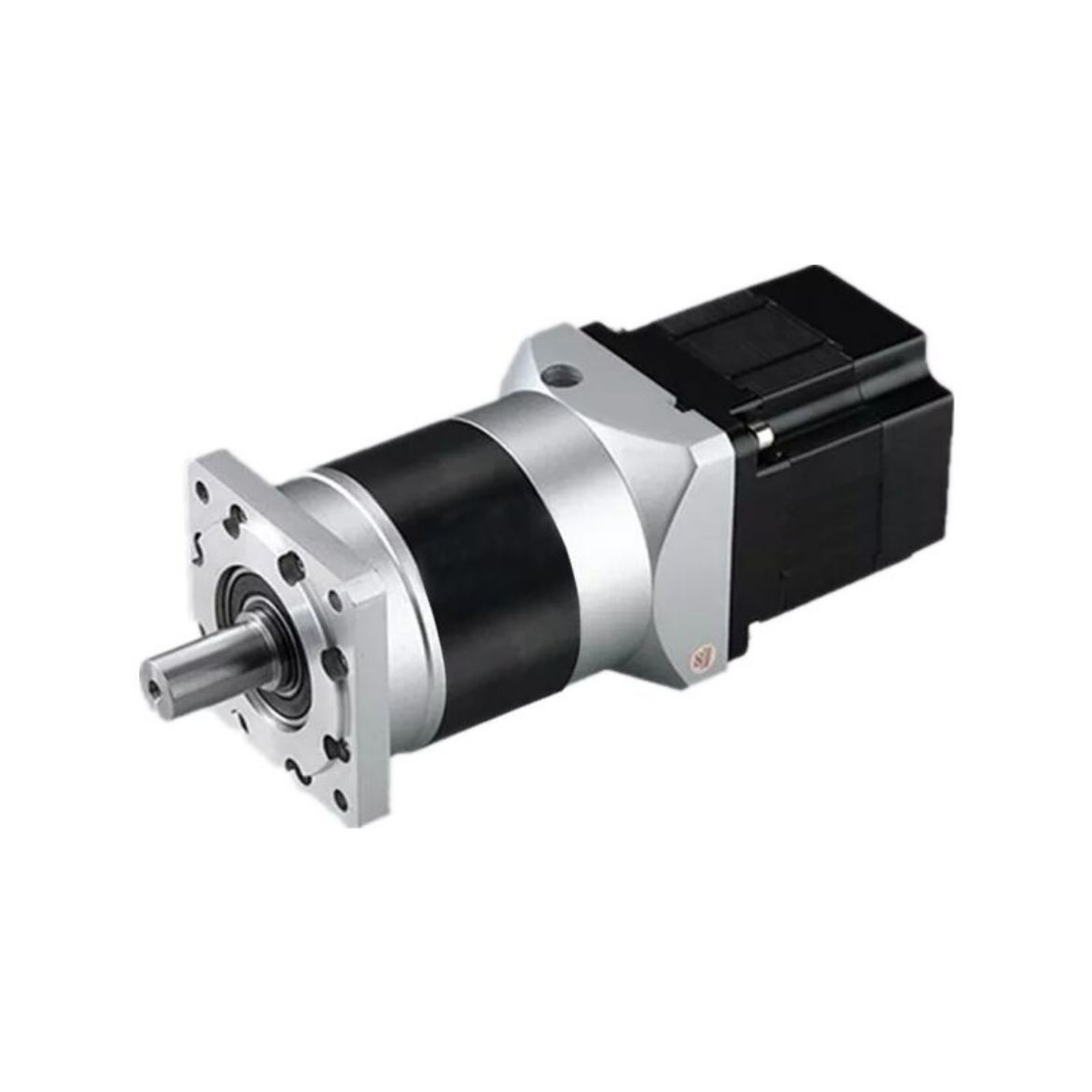

450W BLDC Planetary Gear Motor, 12V/24V/48V

450W BLDC Planetary Gear Motor, 12V/24V/48V

$622.98
| 1 review(s) | Write your review
Get a 450 watt 12 volt DC planetary gear motor online, 24V/36V/48V power supply can be selected. 3000 rpm, 0.32Nm rated torque, speed ratio up to 250. The cheap kit ( 3 phase BLDC motor and a planetary gearbox) can provide high torque at low speeds, widely used in industrial machines.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-GEAR-P450
*
*
increase decrease
  • Overview
  • Contact Us

3 phase 12V/24V/36V/48V brushless DC motor with a planetary gearbox is perfect for electric vehicles. 450W DC planetary gear motor provides 1.43 Nm rated torque, peak torque of 4.30 Nm and 3000 rpm rated speed. High operating efficiency, multiple reduction ratio options.

Features

  • 12V, 24V, 36V and 48V DC planetary gear motors are available.
  • The planetary gearbox speed ratio is up to 250:1.
  • Brushless DC motor with a planetary gearbox has low power consumption, high efficiency and longer battery life.
  • The planetary gear motor provides high torque at low speeds.
  • It is easy for speed adjustment and reversible direction.
  • Power, voltage, speed, shaft, motor length and lead of BLDC planetary gear motor can be customized.

Specifications

Motor Model D5BLD450-12A-30S D5BLD450-24A-30S D5BLD450-36A-30S D5BLD450-48A-30S
Voltage 12V DC 24V DC 36V DC 48V DC
Rated Current 46.88A 23.44A 15.63A 11.72A
No Load Current <10.2A <7.13A <6.5A <5.61A
Recommended drive model BLD-300B BLD-750 BLD-750 BLD-750
Motor Type BLDC Motor
Power 450W
Rated Speed 3000 rpm
No Load Speed 3300 rpm
Rated Torque 1.43 N·m
Peak Torque 4.30 N·m
Motor Dimension 86 mm
Shaft Diameter 14 mm
Construction Permanent Magnet
Direction of Rotation CW/CCW
Certificate CCC, CE, ROSH, LVD, EMC
Gear Ratio 4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250


Note

  • Please contact us for planetary gear motor drawing information before ordering.
  • Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

Allowable Torque with Gear Head

Gear ratio Rated output speed (rpm) Rated torque (Nm) Peak torque (Nm) Rotor inertia (kgcm2)
4 750 5.5 16.5 0.094
5 600 6.9 20.6 0.092
7 429 9.6 28.9 0.091
10 300 8.5 17 0.091
16 188 21.5 60 0.094
20 150 26.9 60 0.092
25 120 33 66 0.092
28 107 30 60 0.091
35 86 33 66 0.091
40 75 30 60 0.091
50 60 33 60 0.091
70 43 21.5 60 0.091
80 38 37.5 60 0.092
100 30 37.5 43 0.092
125 24 41 75 0.092
140 21 37.5 75 0.091
175 17 41 82 0.091
200 15 37.5 75 0.091
250 12 41 82 0.091

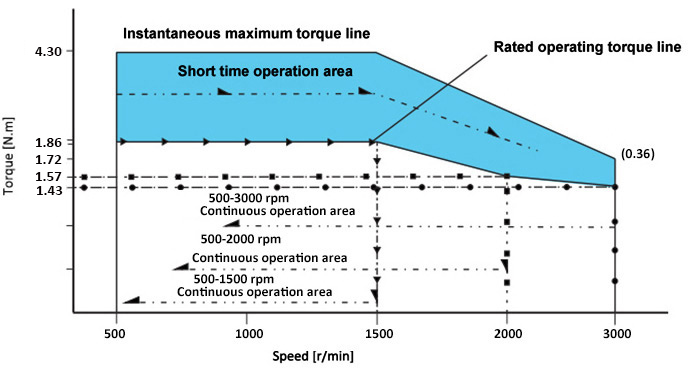

Speed-Torque Curve

450W BLDC planetary gear motor speed torque curve

  • Instantaneous maximum torque line
    The maximum torque momentarily impacts the load when the motor is started.
    Beyond this torque, the over-current protection of the driver will cause the motor to stop.
  • Short-time operation area
    The motor can run for a short time within this torque range at different speeds.
    If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
  • Rated operating torque line
    The rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
  • Continuous operating area
    When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Tips: What are the applications of 450W planetary gear motors?

Planetary gearboxes can be mounted directly to AC and DC servo motors or brushless DC motors. The 3 phase 450W BLDC motor combined with a planetary gearbox can be widely used in industrial fields with medium precision. Such as printing machine tools, flame-cutting, laser cutting, CNC machine tools, tool machinery, food packaging, automation industry, aerospace, medical equipment, robots, precision monitoring systems, vehicle industry, automatic control systems and other industries.
