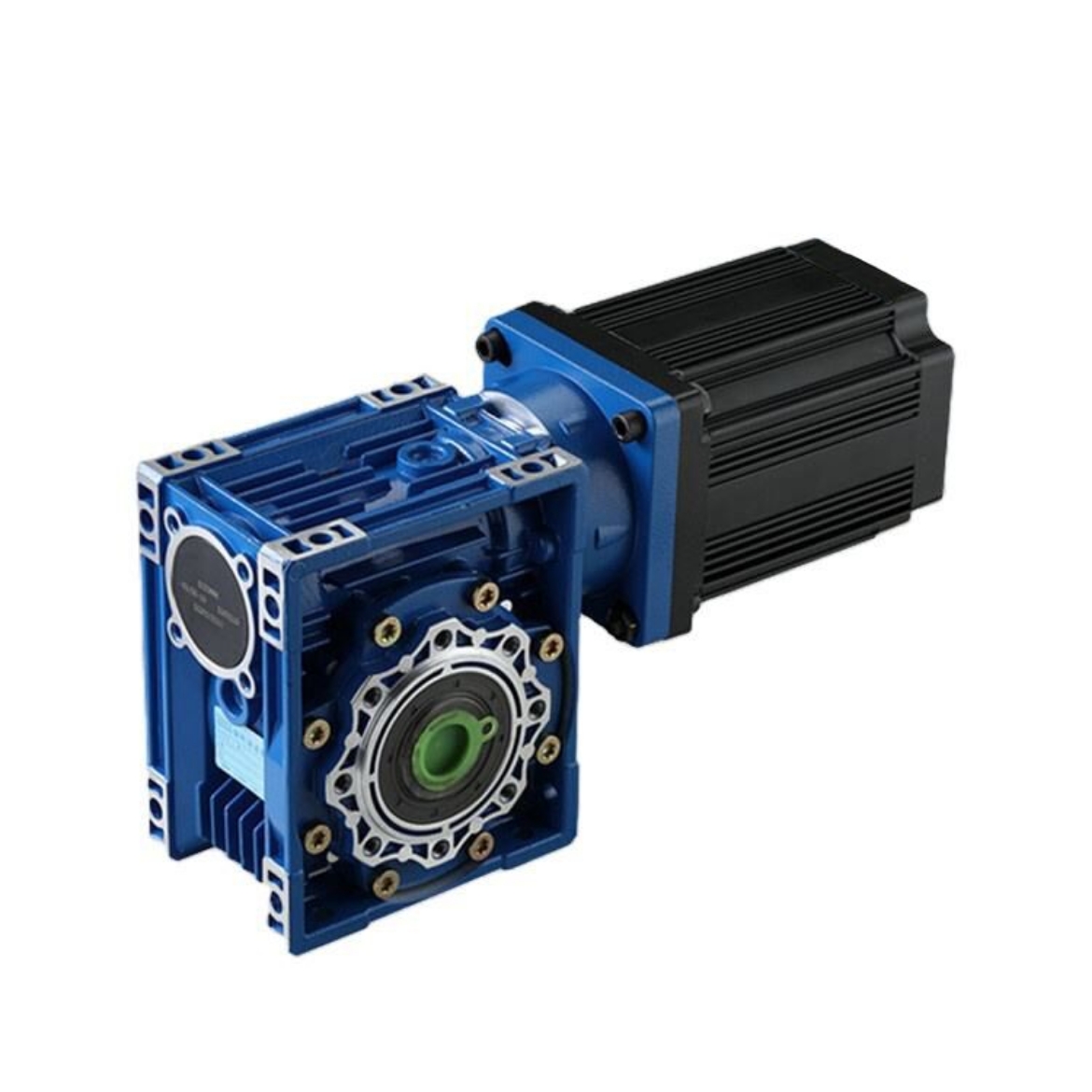

450W BLDC Worm Gear Motor, 12V/ 24V/ 48V

450W BLDC Worm Gear Motor, 12V/ 24V/ 48V

$709.66
| Write your review
High performance BLDC worm gear motor with cheap price online for sale. High torque 450W DC worm gear motor has selectable power supply of 12V, 24V, 36V, 48V, and gear ratio from 7.5:1 to 100:1 can be chosen, low speed at 2000 rpm, rated torque 1.43 Nm, motor dimension 86mm. BLDC motor with worm gearbox used for electric car, renewable energy systems and industrial equipment.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-GEAR-W450
*
*
increase decrease
  • Overview
  • Contact Us

Best selling 450 watt BLDC worm gear motor with optional 24V, 36V or 48V power supply for sale online. Gear ratio from 7.5:1 to 100:1, rated speed of 2000 rpm, rated torque of 1.43 Nm and peak torque 4.29 Nm. It is suitable for all-round installation, and the output torque is relatively large, work fairly smoothly and so on.

Specifications

Motor Model BLDC-D5BLD450-12A BLDC-D5BLD450-24A BLDC-D5BLD450-36A BLDC-D5BLD450-48A
Voltage 12V DC 24V DC 36V DC 48V DC
Rated Current 46.88A 23.44A 15.63A 11.72A
No-load Current < 10.2A < 7.13A < 6.5A < 5.61A
Recommended Drive Model BLD300B BLD750 BLD750 BLD750
Motor Type BLDC Motor
Power 450W
No-load Speed 2700 rpm
Rated Speed 2000 rpm
Rated Torque 1.43 Nm
Peak Torque 4.29 Nm
Motor Dimension 86 mm
Shaft Diameter 11 mm
Construction Permanent Magnet
Direction of Rotation CW/ CCW
Gear Ratio 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100
Certificates CCC, CE, RoHS, LVD, EMC


Note:
 Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

Allowable Torque with Gear Head

Gear Ratio Rated Output Speed (rpm) Rated Output Torque (Nm)
7.5 267 9.7
10 200 12.9
15 133 19.4
20 100 25.8
25 80 32
30 67 36
40 50 32
50 40 38
60 33 28
80 25 34
100 20 29


Note:
This torque value is the rated output value of the reducer, not the final motor + reducer output torque value T.
Final motor + reducer output torque calculation formula: T = motor rated torque * reduction ratio * 0.6, and T ≤ reducer rated allowable output torque value.

Dimensions (Unit: mm)

Mounting screws are included with the gearhead

450W dc worm gear motor dimension

Speed-Torque Curve

450W dc worm gear motor speed torque curve

  • Instantaneous maximum torque line
    The maximum torque momentarily impacts the load when the motor is started.
    Beyond this torque, the over-current protection of the driver will cause the motor to stop.
  • Short-time operation area
    The motor can run for a short time within this torque range at different speeds.
    If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
  • Rated operating torque line
    The rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
  • Continuous operating area
    When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Tips: What is a BLDC worm gear motor?

Worm gear motors are designed to generate high torque in a small package size. 450W worm gear motors are great for applications that require a self-locking or breaking feature since the output shaft can't rotate when there's no power applied. Additionally, Worm gearheads can transfer motion at 90 degrees.
