Low price 48V brushless motor is a 3 phase dc motor, which can control continuously at maximum rotational force (torque). 250W BLDC motor features 3000 rpm rated speed, 0.8 Nm rated torque and 6.51A rated current. High-efficiency brushless DC motor delivers precisely the desired torque and rotation speed, suitable for electric car applications.
Matched Controller Model: BLD-750
Rated Power: 250W
Rated Voltage: 48V
Rated Current: 6.51A
Phase: 3 phase
Rated Torque: 0.8 Nm
Max. Torque: 2.39 Nm
Rated Speed: 3000 rpm
No-load Speed: 3300 rpm
No-load Current: ＜3.11A
Square Flange Size: 86 mm
Working Efficiency: 85%
Insulation Grade: F
Protection Grade: IP54
Motor Lead Length: 1 meter
Certificate: CE, RoHS, ISO
Weight: 3 kg
Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.
- Stable speed control: 48V brushless motor continues to set speed and a feedback signal is compared from the speed of the motor to adjust the voltage applied to the motor; therefore, even if the load change, still can set the speed from slow instantaneous adjustment to, and in order to stabilize the running speed.
- Thin, high power: 3 phase DC motor adopts a permanent magnet brushless motor rotor, thus realizing the thin and high power.
- Wide speed control range: 250W brushless DC motor speed control range than speed ac motor and inverter wider, because unlike the speed ac motor that at low speed have restrictions on the use of torque, so there is no brush motor is suitable for from low speed to high speed, all require the use of a certain torque.
- Contribute to energy saving: The rotor of the brushless dc electric motor is used for the permanent magnet, which can reduce the two-loss of the rotor, so the power consumption is reduced by more than 20% compared with the three-phase induction motor with variable frequency control, which is helpful for the energy saving of the device.
- Equipped with protection function: 48V 250W BLDC motor can help to protect the safety of the equipment system.

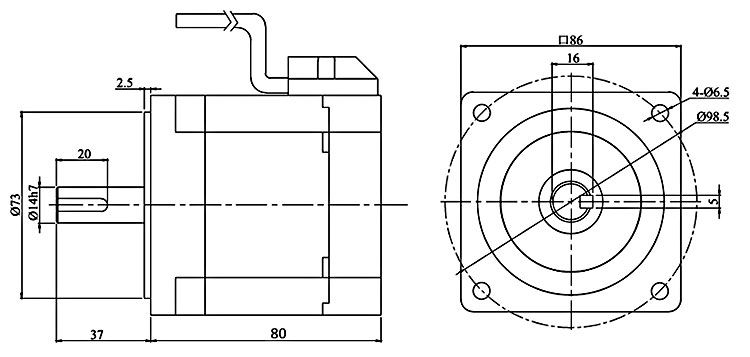

Dimension (Unit: mm)
Speed - Torque Curve
- Instantaneous maximum torque line
The maximum torque momentarily impacts the load when the motor is started.
Beyond this torque, the over-current protection of the driver will cause the motor to stop.
- Short-time operation area
The motor can run for a short time within this torque range at different speeds.
If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
- Rated operating torque line
The rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
- Continuous operating area
When the motor rotates at different speeds, it runs continuously in this corresponding zone.
48V 250W Brushless DC motors are widely used in our lives, such as electric bicycles, inverter air conditioners, washing machines, drones, automobiles, CNC machine tools, polishing and grinding equipment, packaging machinery, tools, turnstiles, industrial control, medical machinery, automation to, AGV trolley, aerospace and intelligent storage equipment, etc.
Tips: How does the 48V BLDC motor achieve phase shifting?
When the 48V brushless motor rotates, the energization direction of the inner coil of the motor needs to be alternated, so as to ensure the continuous rotation of the motor. Phase shifting is done by a 48V brushless DC motor.
