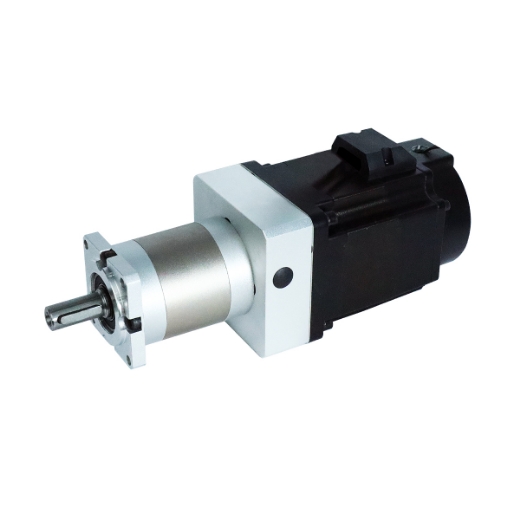

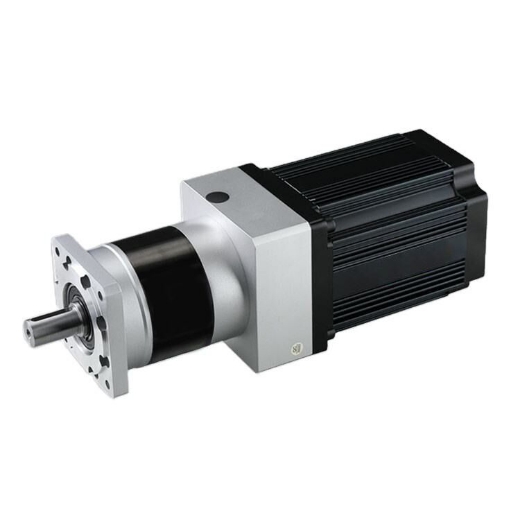

600W BLDC Planetary Gear Motor, 24V/36V/48V
600W BLDC Planetary Gear Motor, 24V/36V/48V 600W BLDC Planetary Gear Motor, 24V/36V/48V 600W BLDC Planetary Gear Motor, 24V/36V/48V

600W BLDC Planetary Gear Motor, 24V/36V/48V

$679.83
| 1 review(s) | Write your review
Low noise 24V/36V/48V planetary gear motor for sale. It is provided with 3000 rpm rated speed, 1.91 Nm rated torque and 4 to 250 gear ratio. Buy 3 phase 600W BLDC motor with a planetary gearbox to offer greater efficiency and increase torque transmission.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-GEAR-P600
*
*
increase decrease
  • Overview
  • Contact Us

600 watt planetary gear motor with 24V/36V/48V DC power supply, 1.91 Nm rated torque, 3000 rpm and peak torque up to 5.73 Nm, high gear speed is available. Brushless motor with a gearbox is designed for electrical cars and industrial machines.

Features

  • 24V, 36V and 48V DC planetary gear motors are available.
  • The planetary gearbox speed ratio is up to 250:1.
  • Brushless DC motor with a planetary gearbox has low power consumption, high efficiency and longer battery life.
  • The planetary gear motor provides high torque at low speeds.
  • It is easy for speed adjustment and reversible direction.
  • Power, voltage, speed, shaft, motor length and lead of BLDC planetary gear motor can be customized.

Specifications

Motor Model D110BLD600-24A-30S D110BLD600-36A-30S D110BLD600-48A-30S
Voltage 24V DC 36V DC 48V DC
Rated Current 31.25A 20.83A 15.63A
No Load Current <7.5A <5A <3.8A
Recommended drive model BLD-300 BLD-750 BLD-750
Motor Type BLDC Motor
Power 600W
Rated Speed 3000 rpm
No Load Speed 4200 rpm
Rated Torque 1.91 N·m
Peak Torque 5.73 N·m
Motor Dimension 110 mm
Construction Permanent Magnet
Direction of Rotation CW/CCW
Certificate CCC, CE, ROSH, LVD, EMC
Gear Ratio 4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250


Note

  • Please contact us for planetary gear motor drawing information before ordering.
  • Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

Allowable Torque with Gear Head

Gear ratio Rated output speed (rpm) Rated torque (Nm) Peak torque (Nm) Rotor inertia (kgcm2)
4 750 1 3.3 0.094
5 600 1 4.1 0.092
7 429 2 5.8 0.091
10 300 3 8.3 0.091
16 188 4 12.9 0.094
20 150 5 16.2 0.092
25 120 7 20.2 0.092
28 107 8 22.6 0.091
35 86 9 28.3 0.091
40 75 11 32.3 0.091
50 60 13 40.4 0.091
70 43 19 56.6 0.091
80 38 21 61.9 0.092
100 30 26 77.4 0.092
125 24 32 96.7 0.092
140 21 36 108.3 0.091
175 17 45 135.4 0.091
200 15 52 154.7 0.091
250 12 64 193.4 0.091


Speed-Torque Curve

600W BLDC planetary gear motor speed torque curve

  • Instantaneous maximum torque line
    The maximum torque momentarily impacts the load when the motor is started.
    Beyond this torque, the over-current protection of the driver will cause the motor to stop.
  • Short-time operation area
    The motor can run for a short time within this torque range at different speeds.
    If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
  • Rated operating torque line
    The rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
  • Continuous operating area
    When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Tips: What are the 2 advantages of a 600W planetary gear motor?

The two greatest advantages of 600W planetary geared motors are high power density and compact size and weight. Planetary gear motors are also generally quite efficient, and they are generally more accurate than other gear types with little to no backlash.
