96V 2300W (3 hp) Brushless DC Motor, 7.3 Nm, 3000 rpm, 30A

Small 96V BLDC motor is a 3 phase brushless DC motor. 3000 rpm rated speed with high torque of 7.3 Nm, high effeciency can up to 85%. Low speed brushless DC motor has no brushes, and no sparks will be generated during operation, which greatly reduces friction.

Basic Specifications

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

Features

• Stable Speed Control: 96V brushless motor continues to set speed and a feedback signal is compared from the speed of the motor to adjust the voltage applied to the motor; therefore, even if the load change, still can set the speed from slow instantaneous adjustment to, and in order to stabilize the running speed.
• Thin, High Power: 3 phase DC motor adopts a permanent magnet brushless motor rotor, thus realizing the thin and high power.
• Wide Speed Control Range: The speed control range of 3 hp brushless motor than speed AC motor and inverter is wider, because, unlike the speed AC motor that at low speed has restrictions on the use of torque, there is no brush motor is suitable for from low speed to high speed, all require the use of a certain torque.
• Contribute To Energy Saving: The rotor of the brushless motor is used for the permanent magnet, which can reduce the two-loss of the rotor, so the power consumption is reduced by more than 20% compared with the three-phase induction motor with variable frequency control, which is helpful for the energy saving of the device.
• Equipped With Protection Function: The high-speed BLDC motor helps to protect the safety of the equipment system.

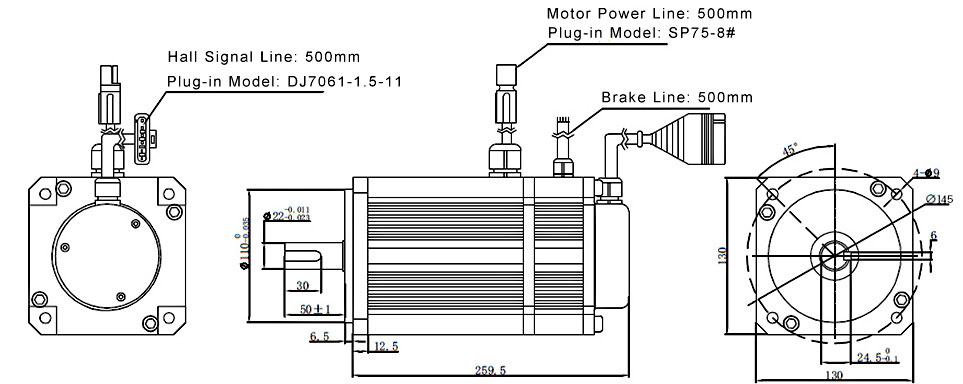

Dimension (Unit: mm)

Line Define

Power Wire

Feedback Wire

Details

Applications:

High-torque brushless DC motors are widely used in our lives, such as electric bicycles, inverter air conditioners, washing machines, drones, automobiles, CNC machine tools, polishing and grinding equipment, packaging machinery, tools, turnstiles, industrial control, medical machinery, automation to, AGV trolley, aerospace and intelligent storage equipment, etc.

Tips: What information do I offer if I want to modify the 1600lbs cart with a bldc electric motor to move it?

According to your situation, we need to confirm the motor power, working voltage, speed, and whether it needs to configure gearbox, ..etc and other parameters, so it's better to check the cart manufacturer about these parameters, so can recommend you the most suited BLDC motor.
