Buy a high torque brushless dc electric motor online. 600W BLDC motor works at 96V, which has 6 Nm rated torque, peak torque can up to 18 Nm and rated speed of 1000 rpm. Brushless motors are found in electric vehicles, hybrid vehicles, personal transporters, and electric aircraft.
Basic Specifications
Model: BLDC-110WDM06010
Matched Controller Model: TH-G
Rated Power: 600W
Rated Voltage: 96V
Rated Current: 8.2A
Phase: 3 phase
Rated Torque: 6 Nm
Max Torque: 18 Nm
Rated Speed: 1000 rpm
Max. speed: 1200 rpm
Square Flange Size: 110 mm
Working Efficiency: 85%
Insulation Grade: F
Protection Grade: IP54
Motor Lead Length: 1 meter
Certificate: CE, RoHS, ISO
Weight: 6.6 kg
Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of ATO BLDC Motors can be customized.
Features
- Stable speed control: 96V brushless motor continues to set speed and a feedback signal is compared from the speed of the motor to adjust the voltage applied to the motor; therefore, even if the load change, still can set the speed from slow instantaneous adjustment to, and in order to stabilize the running speed.
- Thin, high power: 3 phase DC motor adopts a permanent magnet brushless motor rotor, thus realizing the thin and high power.
- Wide speed control range: 600W brushless DC motor speed control range than speed ac motor and inverter wider, because unlike the speed ac motor that at low speed have restrictions on the use of torque, so there is no brush motor is suitable for from low speed to high speed, all require the use of a certain torque.
- Contribute to energy saving: The rotor of the brushless dc electric motor is used for the permanent magnet, which can reduce the two-loss of the rotor, so the power consumption is reduced by more than 20% compared with the three-phase induction motor with variable frequency control, which is helpful for the energy saving of the device.
- Equipped with protection function: 96V 600W BLDC motor can help to protect the safety of the equipment system.
Dimension (Unit: mm)
Line Define
Power Wire
| Red |
Yellow |
Blue |
| Motor U |
Motor V |
Motor W |
Feedback Wire
| Hall Line Color |
Hall Signal Definition |
Plug Serial Number |
| Orange and Black |
5V |
1 |
| Orange |
0V |
2 |
| Yellow |
Hall A |
3 |
| Blue |
Hall B |
4 |
| Green |
Hall C |
5 |

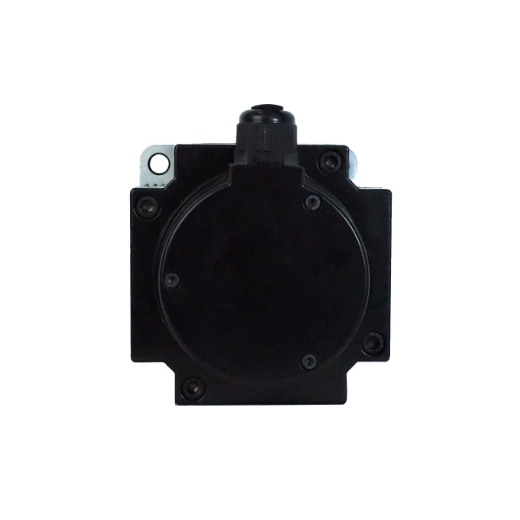

Details
Applications
Brushless DC motors are widely used in our lives, such as electric bicycles, inverter air conditioners, washing machines, drones, automobiles, CNC machine tools, polishing and grinding equipment, packaging machinery, tools, turnstiles, industrial control, medical machinery, automation to, AGV trolley, aerospace, and intelligent storage equipment, etc.
Tips: Is regenerative braking possible in 600W BLDC motor?
After driving the 96V BLDC motor and when a stopping command is given to the motor, the motor will stop after a certain time with its own inertia. It will produce back EMF. Regenerative braking will also be activated during this time. The regenerative braking system will induce the back EMF.
