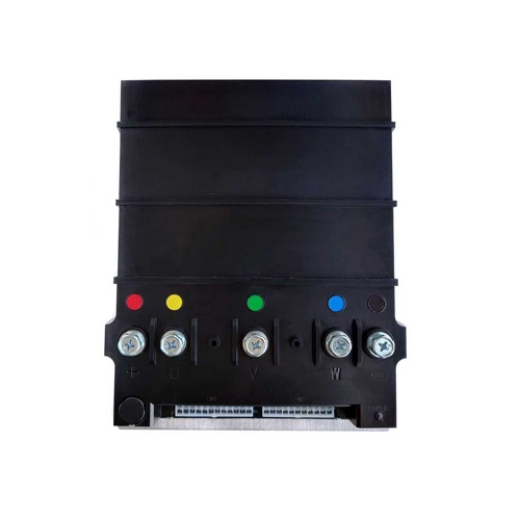

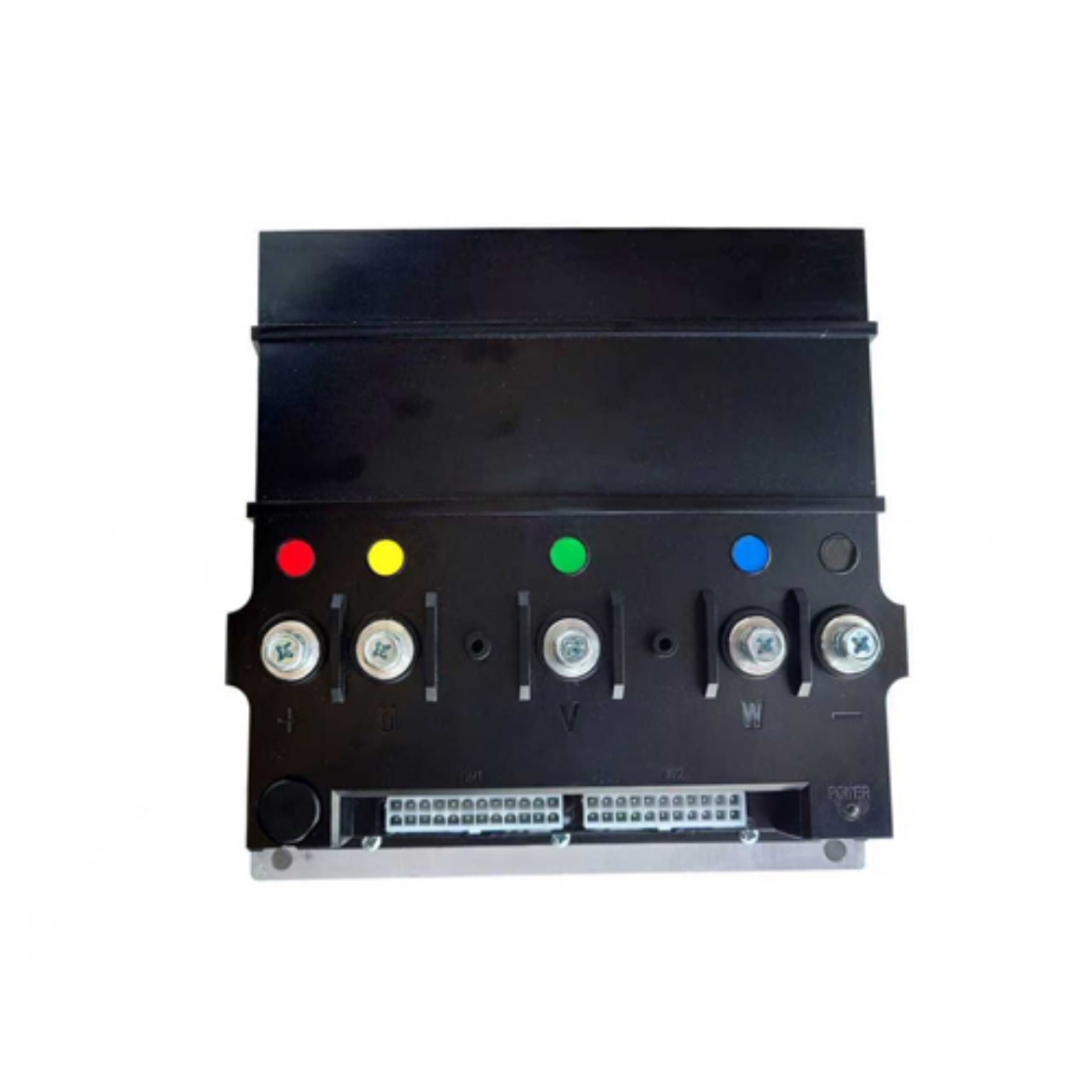

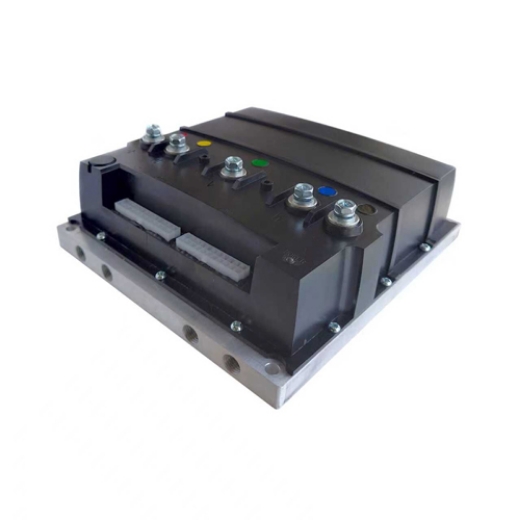

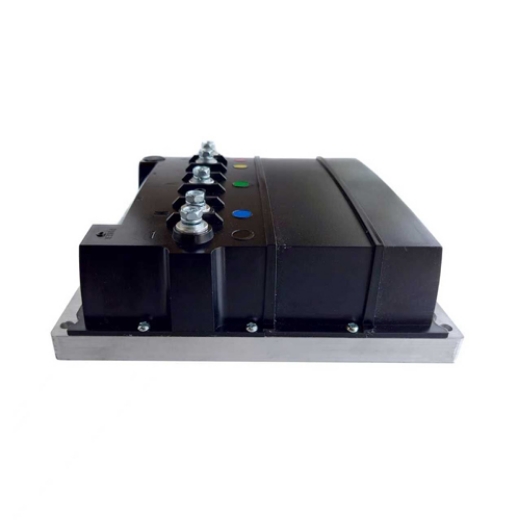

High-efficiency 10kW brushless motor controller is a sine wave controller which for 48V/72V/96V BLDC motor, comes with rated current 200A, and maximum current 500A. The BLDC motor with a controller is suitable for electric vehicles, cars, motorcycles, golf carts, ATVs, UTVs and yachts.
Specifications
- Model: BLDC-VEC500
- Match Motor: BLDC-EVA-10000, BLDC-EVW-10000
- Voltage Range: 48V/72V/96V
- Rated Current: 200A
- Max Current: 500A
- Motor Control Mode: FOC
- Size: 200*190*58mm
- Weight: 3.2kg
- Driving Method: Direct torque control
- Controller Type: Sine Wave Controller
- Speed Limit: Controlled by motor and configuration
- Features: Field-oriented control(vector control), super reliable, high efficiency, smooth control, programmable and responsive.
Dimensions (Unit: mm)
Applications
10KW brushless DC motor works with a brushless controller that is suitable for cars, motorcycles, golf carts, ATVs, UTVs and yachts.
Tips: Can a BLDC motor work without a brushless controller?
No. A brushless motor needs a motor controller to switch the power to the coils at the right times to keep the motor turning. There's no way to make the motor do anything useful without a brushless motor controller.
