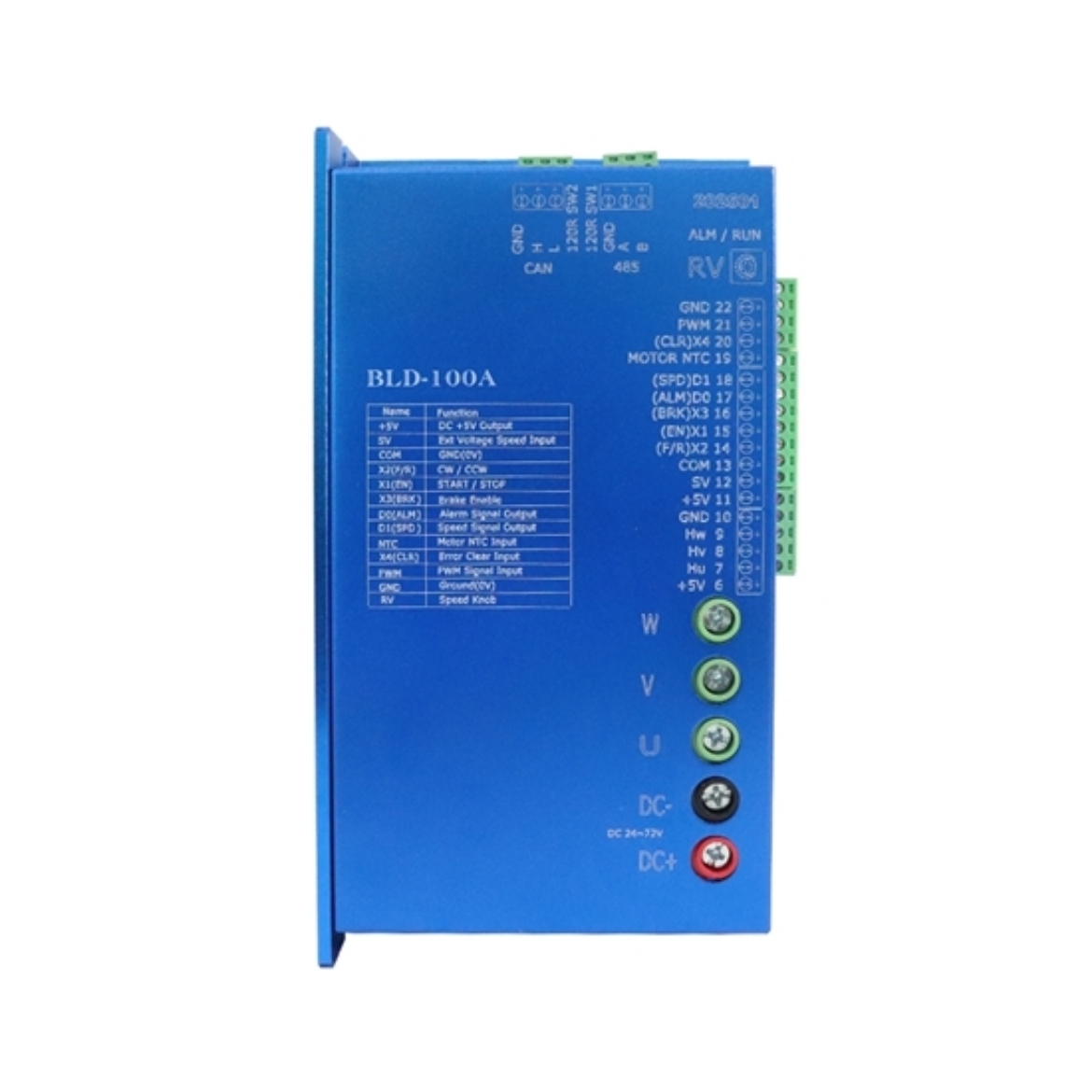

Brushless Controller for 24/36/48/60V BLDC Motor

Factory price brushless motor controller with low voltage works at 12-60V DC power supply, can be operated in open or closed loop speed mode. The brushless motor controller has the advantages of low interference, low noise, smooth operation and long service life.

Specifications

• Model: BLDC-BD100
• Rated Current: 75A
• Power Supply: 24V ~ 60V DC
• Rated Input Voltage Range: DC +24~ +72V
• Operating Temperature Range: -40-+80℃
• IO Input: Supports NPN, PNP; NPN: 0V is low, 5~24V is high, current 20mA; PNP: 13V high output, low to ground
• IO Output: Open Drain NPN Output Voltage: not exceed 30V, Current: 500mA
• SV Input Characteristics: DC 0-5V range or DC 0-10V range; Deadband Voltage Adjustment Range: 0.2~1.0V; Input Internal Resistance:100k
• PWM Input Characteristics: Frequency Range: 1~10kHz (50% duty cycle); Duty Cycle Range:0~100%(100Hz-1000Hz); Signal Voltage: DC 5~24V
• CAN Communication Parameters: ID: 0~255; Baud Rate: 125/250/500 kbps
• 485 Communication Parameters: 485 Communication Parameters; Baud Rate: 9600/19200/38400/57600/115200 bps
• Load: 150% of Rated Current; Overload Duration: 30~1s (at 150% Rated)
• External Temperature Sensor: Customizable; ntc=mf52-103f-3435-55l
• Control Method: Torque Loop (Open Loop) Speed Loop (Close Loop)
• Acceleration and Deceleration Times: 0.5-16s Motor Without Load
• Overheating Protection: Inside the Driver:+85℃

Note:

1. RS485 (Modbus RTU) and CAN Bus cannot be used at the same time.
2. VRM and PWM cannot be used at the same time.

Dimension (mm)

Note:

• Please install, connect and debug the motor controller with industry technicians.
• It is not allowed to install, remove or replace the circuit of the motor controller when it is live.
• Be sure to install necessary protective devices between the power input and the power supply (battery) to avoid dangerous accidents or fatal injuries.
• Need to install: overcurrent protector, insurance, emergency switch.
• Please do the isolation and insulation protection between the motor controller and the ground and equipment.
• If there is a real need for live debugging of this motor controller, please choose a non-metallic well-insulated screwdriver or special debugging tool.
• This motor controller shall be installed in a well-ventilated environment.
• This motor controller cannot be directly used in high humidity, dust, corrosive gas, or strong vibration of an abnormal environment.

Tips: Can the brushless controller short time the peak power of 9.4kw?

Yes, you can choose a 2.6 to 4 kW controller, and you can permanently use the motor's 3.8 kW power. 9.4 kW is the peak power of the motor, which does not affect the use of the controller.
