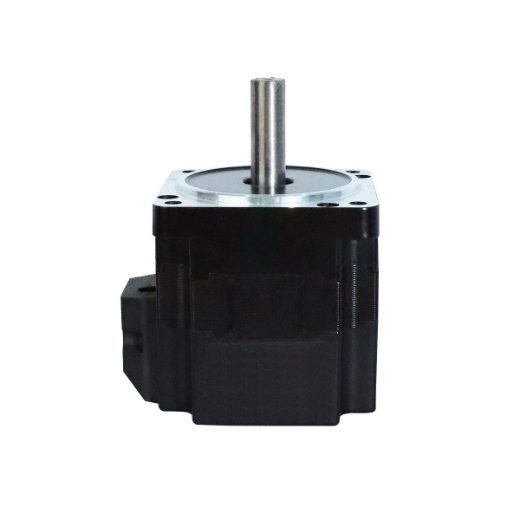

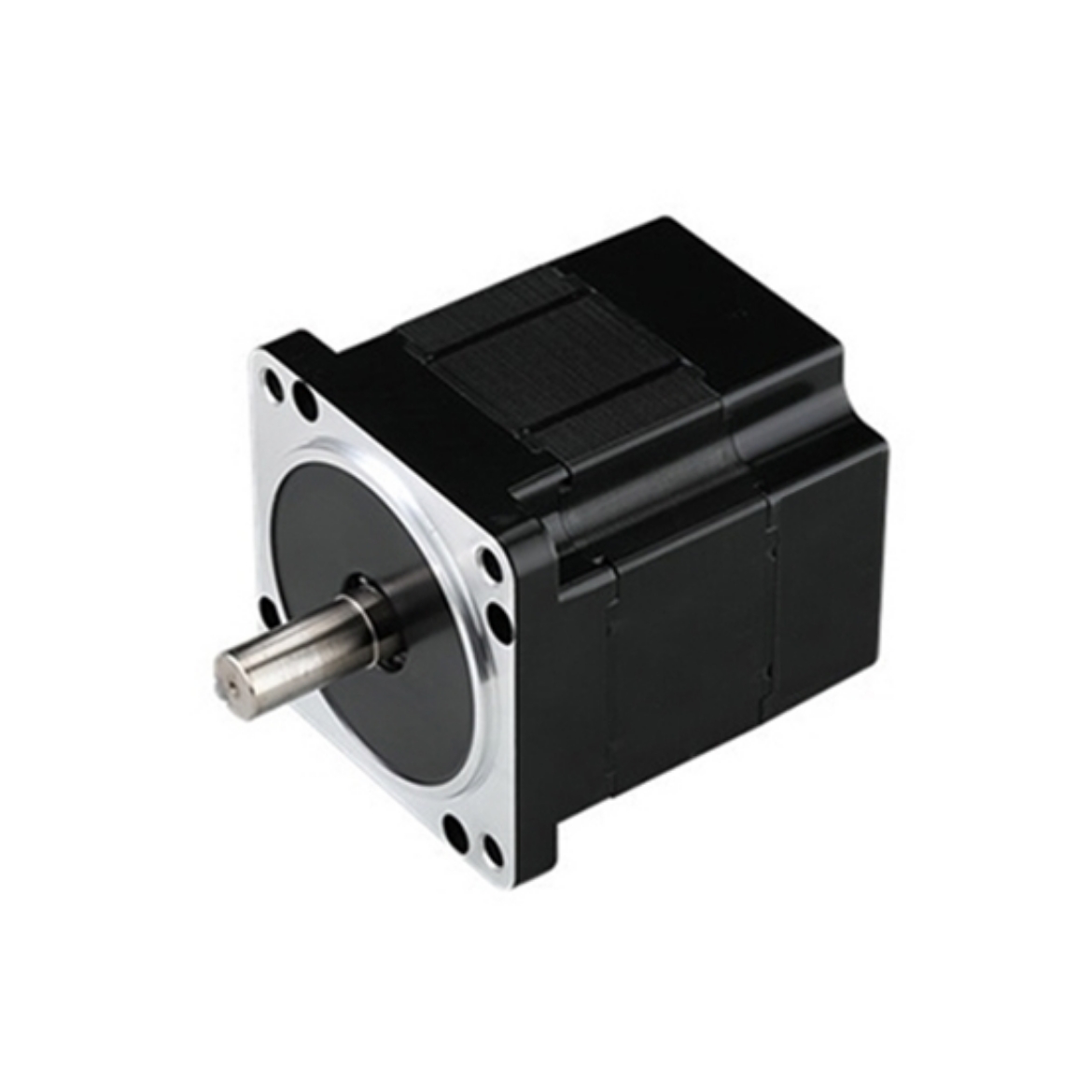

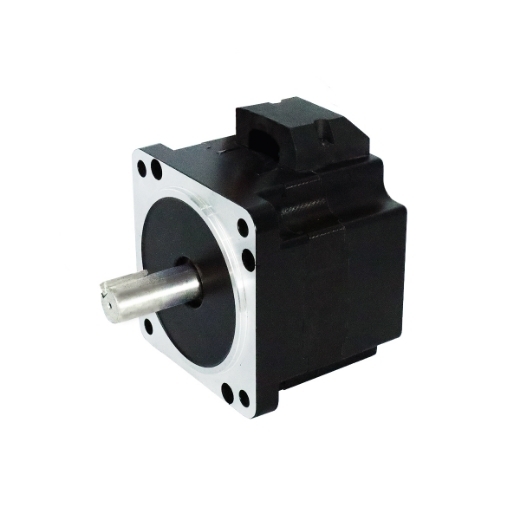

24V 500W Brushless DC Motor, 2.4 Nm, 2000 rpm, 26.1A
24V 500W Brushless DC Motor, 2.4 Nm, 2000 rpm, 26.1A 24V 500W Brushless DC Motor, 2.4 Nm, 2000 rpm, 26.1A 24V 500W Brushless DC Motor, 2.4 Nm, 2000 rpm, 26.1A 24V 500W Brushless DC Motor, 2.4 Nm, 2000 rpm, 26.1A 24V 500W Brushless DC Motor, 2.4 Nm, 2000 rpm, 26.1A

24V 500W Brushless DC Motor, 2.4 Nm, 2000 rpm, 26.1A

$564.53
| 1 review(s) | Write your review
Lower cost 24V BLDC motor is perfect for the electric car. The 500W BLDC motor comes with 2000 rpm rated speed, 2.4 Nm rated torque and 26.1A rated current. 3-phase brushless DC electric motor offers excellent torque performance, high power, extremely wide speed range, and unrivaled service life.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-24V-500W
*
*
*
*
*
increase decrease
  • Overview
  • Document
  • Contact Us

500 watt 24 volt brushless DC motor for sale, rated speed of 2000 rpm, IP54 protection grade. Small BLDC motors use electronic capabilities, allowing for fast and precise control of the speed and position of a motor.

Basic Specifications

Model: BLDC-80WDM02420-24V
Matched Controller Model: TH-G
Rated Power: 500W
Rated Voltage: 24V DC
Rated Current: 26.1A
Phase: 3 phase

Rated Torque: 2.4 Nm
Max. Torque: 7.5 Nm
Rated Speed: 2000 rpm
No-load Speed: 2400 rpm
Square Flange Size: 80 mm
Working Efficiency: 85%

Insulation Grade: F
Protection Grade: IP54
Motor Lead Length: 1 meter
Certificate: CE, RoHS, ISO
Weight: 3 kg

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

Features

  • Stable Speed Control: 24V brushless motor continues to set speed and a feedback signal is compared from the speed of the motor to adjust the voltage applied to the motor; therefore, even if the load change, still can set the speed from slow instantaneous adjustment to, and in order to stabilize the running speed.
  • Thin, High Power: 3 phase DC motor adopts a permanent magnet brushless motor rotor, thus realizing the thin and high power.
  • Wide Speed Control Range: The speed control range of 500W brushless motor than speed AC motor and inverter wider, because unlike the speed AC motor that at low speed have restrictions on the use of torque, so there is no brush motor is suitable for from low speed to high speed, all require the use of a certain torque.
  • Contribute To Energy Saving: The rotor of the brushless motor is used for the permanent magnet, which can reduce the two-loss of the rotor, so the power consumption is reduced by more than 20% compared with the three-phase induction motor with variable frequency control, which is helpful for the energy saving of the device.
  • Equipped With Protection Function: The high-speed BLDC motor helps to protect the safety of the equipment system.

Dimension (Unit: mm)

500W BLDC motor dimension

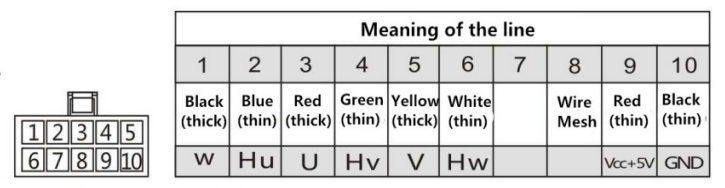

Line Define

Power Wire

Red Yellow Blue
Motor U Motor V Motor W



Feedback Wire

Hall Line Color Hall Signal Definition Plug Serial Number
Orange and Black 5V 1
Orange 0V 2
Yellow Hall A 3
Blue Hall B 4
Green Hall C 5



Details

400W BLDC motor details



Applications:

High-torque brushless DC motors are widely used in our lives, such as electric bicycles, inverter air conditioners, washing machines, drones, automobiles, CNC machine tools, polishing and grinding equipment, packaging machinery, tools, turnstiles, industrial control, medical machinery, automation to, AGV trolley, aerospace and intelligent storage equipment, etc.

BLDC applications

Tips: Can a 500W BLDC motor run without ESC?

No, you cannot run a brushless DC motor straight off a battery. Brushless DC motors are not really DC motors. The reason they are called DC motors is that their performance characteristics resemble a brushed DC motor. A brushless DC motor doesn't have a physical commutator so it needs some method of switching the direction of current in the windings. That is one of the roles of brushless motor control.



DownloadPDF24V 500W BLDC Motor Specs Datasheet PDF

Download PDFBrushless-TH-G Series BLDC Motor Controller User Manual

Download PDFBrushless BLDC Motors Catalog
