3kW BLDC Motor For Electric Vehicle, Water Cooling

Factory price 3kW brushless dc motor for the electric vehicle. Water-cooled BLDC motor comes with 48V/60V/72V rated voltage and 10 N.m rated torque. High torque BLDC electrical car motor has a higher torque to weight ratio, which is important for electric cars and vehicles. It matched with a motor controller to make the vehicle lighter and still get enough torque.

Specifications

• Model: BLDC-HPM3000L
• Voltage: 48V/60V/72V
• Rated Power: 2kW-3kW
• Peak Power: 6kW
• Rated Current: 75A/55A
• Max Phase Current: 240A/220A
• Protection Class: IP54
• Efficiency: >90%
• Rated Speed: 3600 rpm
• Rated Torque: 10 N.m
• Peak Torque: 25 N.m
• Poles: 8
• Weight: 8kg

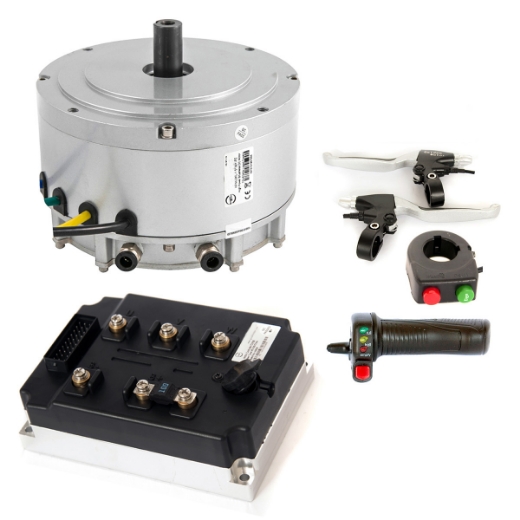

• Matched Controller: BLDC-VEC200
• Cooling System: Water cooling
• Dimension: 18cm dia. 12.5cm height
• Measurement: 25cm*25cm*26cm/CTN

Features

• 3kW brushless dc motor has a compact design, water resistant, stainless steel shaft and self-cooling fan.
• A water-cooled brushless motor is easy to use and requires no additional equipment.
• You will get better cooling. Also, you can use it in closed positions like cars, or outboards, where there isn't enough wind to cool the motor. But you need to make an extra pump to make it work.

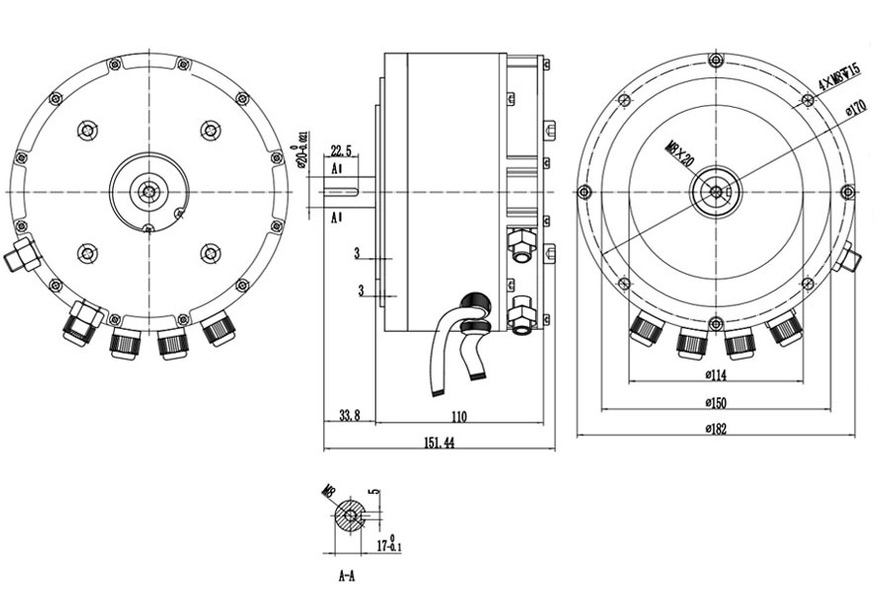

Dimensions (Unit: mm)

Applications

3KW brushless DC motors are suitable for cars, motorcycles, golf carts, ATVs, UTVs and yachts.

Tips: Why Choose a Water Pump with a BLDC Motor?

The water pump can transport liquid or increase the pressure of the liquid. It is a machine that converts the mechanical energy of the original motor into a liquid that can be pumped out. BLDC water pump adopts DC 24V to drive brushless DC motor. The brushless DC motor drives the impeller to increase the liquid pressure and transport the liquid.
