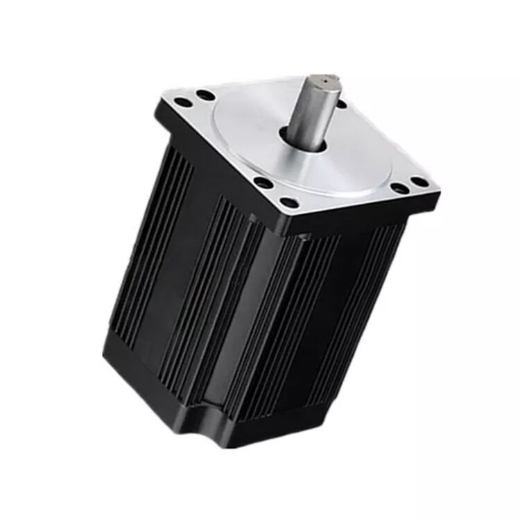

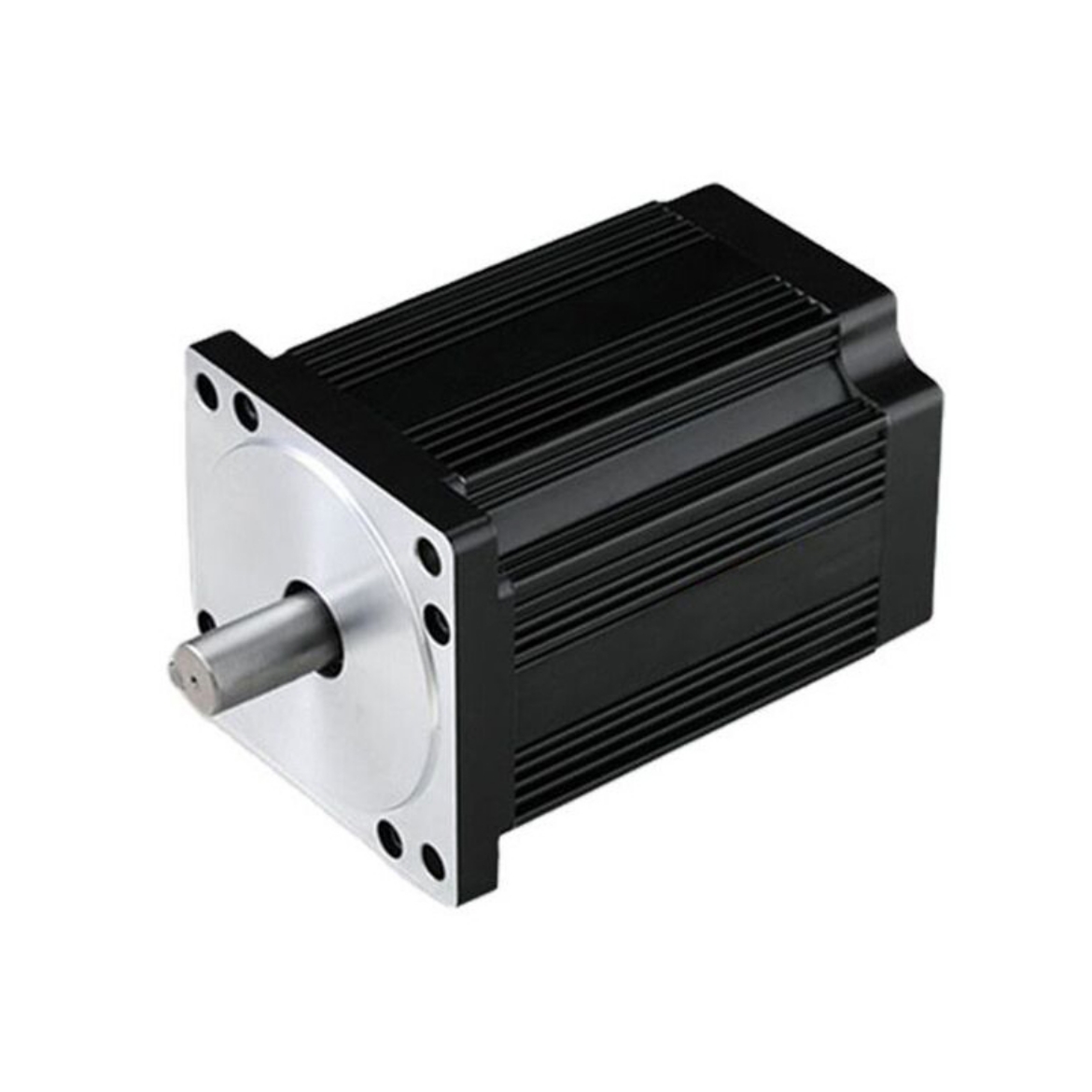

48V 600W Brushless DC Motor, 1.91 Nm, 3000 rpm, 15.63A
48V 600W Brushless DC Motor, 1.91 Nm, 3000 rpm, 15.63A 48V 600W Brushless DC Motor, 1.91 Nm, 3000 rpm, 15.63A

48V 600W Brushless DC Motor, 1.91 Nm, 3000 rpm, 15.63A

$505.88
| 1 review(s) | Write your review
Buy a high torque brushless DC motor at low cost. 3 phase small brushless motor is best for electric car applications. The 600 watt BLDC motor is available with 3000 rpm rated speed, 1.91 Nm rated torque, 3000 rpm rated speed and 15.63A rated current. High controllability 48V BLDC motor is designed for long operating life.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-48V-600W
*
*
*
increase decrease
  • Overview
  • Document
  • Contact Us

Affordable high torque BLDC motor for sale online. 3 phase small brushless motor works at 48V power supply, and has 3000 rpm rated speed, 1.91 Nm rated torque and 15.63A rated current. 600 watt Brushless DC motor is designed for long operating life.

Basic Specifications

Model: BLDC-D110BLD600-48A-30S
Matched Controller Model: BLD-750
Rated Power: 600W
Rated Voltage: 48V
Rated Current: 15.63A
Phase: 3 phase

Rated Torque: 1.91 Nm
Max Torque: 5.73 Nm
Rated Speed: 3000 rpm
No-load Speed: 4200 rpm
No-load Current: <
3.8A
Square Flange Size:
110 mm

Working Efficiency: 85%
Insulation Grade: F
Protection Grade: IP54
Motor Lead Length: 1 meter
Certificate: CE, RoHS, ISO
Weight: 6.6 kg

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

Features

  • Stable speed control: 48V brushless motor continues to set speed and a feedback signal is compared from the speed of the motor to adjust the voltage applied to the motor; therefore, even if the load change, still can set the speed from slow instantaneous adjustment to, and in order to stabilize the running speed.
  • Thin, high power: 3 phase DC motor adopts a permanent magnet brushless motor rotor, thus realizing the thin and high power.
  • Wide speed control range: 600W brushless DC motor speed control range than speed ac motor and inverter wider, because unlike the speed ac motor that at low speed have restrictions on the use of torque, so there is no brush motor is suitable for from low speed to high speed, all require the use of a certain torque.
  • Contribute to energy saving: The rotor of the brushless dc electric motor is used for the permanent magnet, which can reduce the two-loss of the rotor, so the power consumption is reduced by more than 20% compared with the three-phase induction motor with variable frequency control, which is helpful for the energy saving of the device.
  • Equipped with protection function: 48V 600W BLDC motor can help to protect the safety of the equipment system.

Dimension (Unit: mm)

48V 600W brushless dc motor dimension

Speed - Torque Curve

48V 600W bldc motor torque speed curve

  • Instantaneous maximum torque line
    The maximum torque momentarily impacts the load when the motor is started.
    Beyond this torque, the over-current protection of the driver will cause the motor to stop.
  • Short-time operation area
    The motor can run for a short time within this torque range at different speeds.
    If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
  • Rated operating torque line
    The rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
  • Continuous operating area
    When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Line Define

Power Wire Hall Wire
Red U Red 5V
Yellow V Black GND
Black W Blue Hu
Green Hv
White Hw


Details

48V 600W BLDC motor details

Applications

48V 600W Brushless DC motors are widely used in our lives, such as electric bicycles, inverter air conditioners, washing machines, drones, automobiles, CNC machine tools, polishing and grinding equipment, packaging machinery, tools, turnstiles, industrial control, medical machinery, automation to, AGV trolley, aerospace, and intelligent storage equipment, etc.

BLDC motor applications

Tips: Can I connect the 48V motor directly to the power supply and turn it on/off manually?

Unfortunately, the motor you chose is a 48V brushless motor, so you can't plug the motor directly into the power supply. You must configure the motor controller to use it properly. If there are still questions, please contact us.

Download PDFBLD-750 Controller Specs Datasheet PDF

Download PDFBrushless BLDC Motors Catalogs
