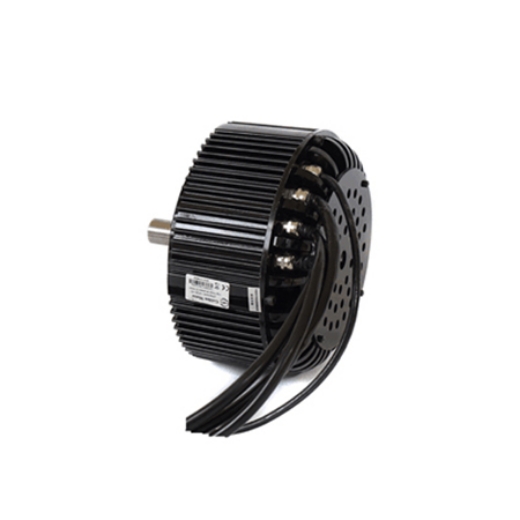

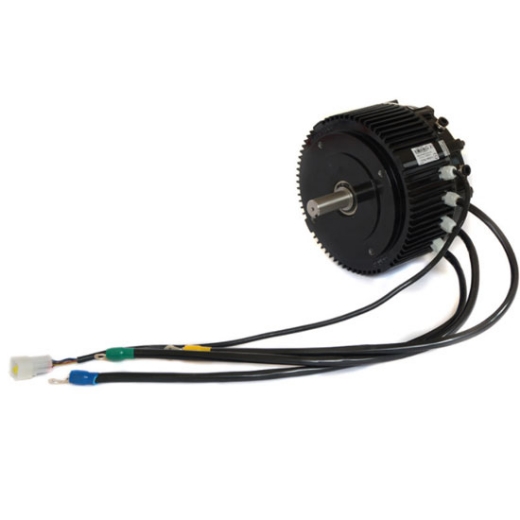

5kW BLDC Motor For Electric Vehicle, Air Cooling
5kW BLDC Motor For Electric Vehicle, Air Cooling 5kW BLDC Motor For Electric Vehicle, Air Cooling

5kW BLDC Motor For Electric Vehicle, Air Cooling

$1,375.68
| 1 review(s) | Write your review
Buy small size air-cooled brushless DC motor online, power 5kW, rated speed 3000~5000 rpm, rated voltage 24V/36V/48V optional, suitable for electric vehicles, motorcycles, golf carts, ATVs, UTVs and yachts.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-EVA-5000
*
increase decrease
  • Overview
  • Specifications
  • Reviews
Overview

72V 5000W DC brushless motor for electric vehicles, rated speed 3000~5000 rpm, air-cooled cooling type, easy to build, no additional equipment required, best choice to provide cooling air for building electric motorcycles with sufficient airflow.

Basic Specifications

  • Model: BLDC-HPM5000A
  • Voltage: 24V/36V/48V/72V
  • Rated Power: 5 kW
  • Peak Power: 10 kW
  • Rated Current: 125A/85A/60A
  • Max Phase Current: 300A/260A/200A
  • Protection Class: IP54
  • Rotational Speed: 3700 rpm
  • Rated Torque: 13Nm
  • Peak Torque: 45Nm
  • Efficiency: >90%
  • Diameter: 21cm
  • Height: 18cm
  • Weight: 11kg
  • Cooling Method: Air-cooled

Features

  • 5kW brushless dc motor has a compact design, water resistant, stainless steel shaft, and self-cooling fan.
  • Air-cooled brushless motors are easy to build and require no additional equipment.
  • If you want to build an electric motorcycle with plenty of air to provide cooling air, the cooling system will be your best choice.

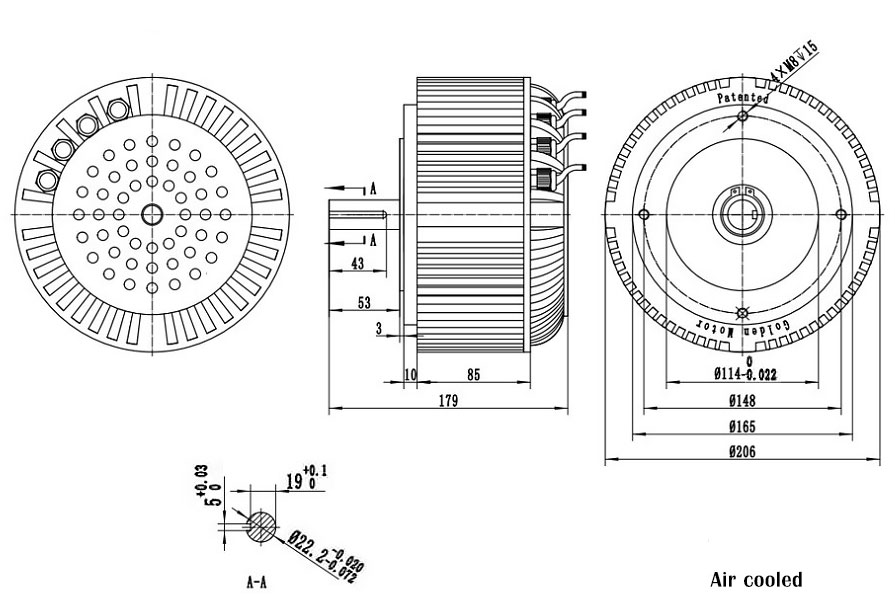

Dimension (mm)

5 kW air cooling bldc motor dimension

Applications

BLDC electrical car motor applications

Tips: Can brushless DC motors be used in electric vehicles?

Brushless DC (BLDC) motors are popular motors in the industrial and automotive fields. In the automotive field, these motors are often used in electric vehicles (EVs) due to their high efficiency.

Specifications
Products specifications
Attribute name Attribute value
Power 3.2 kW - 5 kW
Write your own review
*
*
Reviews
The electric car motor runs very quietly
I've been using my electric bike with a BLDC motor for a few months now and I couldn't be happier. The motor provides plenty of power for uphill climbs and it's so much quieter than my old bike with a traditional motor.
Amelia | 3/29/2023 6:55 PM
Was this review helpful? Yes No (0/0)
