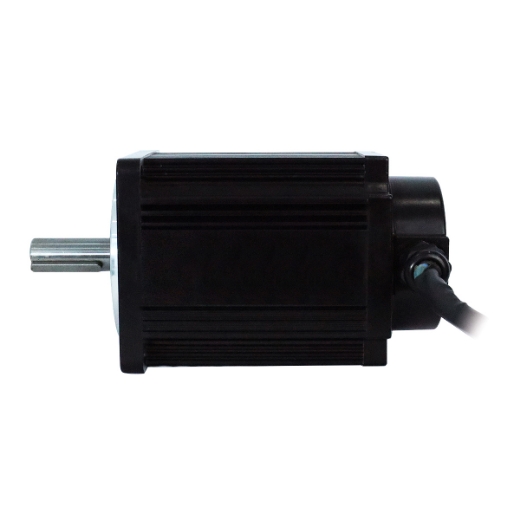

96V 1000W Brushless DC Motor, 10 Nm, 1000 rpm, 12.8A
96V 1000W Brushless DC Motor, 10 Nm, 1000 rpm, 12.8A 96V 1000W Brushless DC Motor, 10 Nm, 1000 rpm, 12.8A 96V 1000W Brushless DC Motor, 10 Nm, 1000 rpm, 12.8A 96V 1000W Brushless DC Motor, 10 Nm, 1000 rpm, 12.8A

96V 1000W Brushless DC Motor, 10 Nm, 1000 rpm, 12.8A

$784.83
| 1 review(s) | Write your review
High-torque 96V brushless motor power 1000 watts with competitive price, rated at 1000 rpm, 12.8A rated current, 10 Nm rated torque, high efficiency can up to 85%, 130mm square flange size. 3-phase small BLDC electric motor is the best choice for automation, agricultural and home use.
Free shipping
Delivery date: 30-45 days
SKU: BLDC-96V-1000W
*
*
*
*
*
increase decrease
  • Overview
  • Document
  • Reviews
Overview

Buy a low-speed 1kW brushless motor online at a cheap price. 96V brushless electric motor with low speed of 1000 rpm, no-load speed 1200 rpm, 10 Nm rated torque and max. torque to 30 Nm, IP65 for the body. BLDC motor works with a matching controller may achieve simple to complex control, and meet various communication requirements.

Basic Specifications

Model: BLDC-130WDM10010
Matched Controller Model: KBL
Rated Power: 1000W
Rated Voltage: 96V
Rated Current: 12.8A
Phase: 3 phase

Rated Torque: 10 Nm
Max Torque: 30 Nm
Rated Speed:
1000 rpm
No-load Speed:
1200 rpm
Square Flange Size:
130 mm
Insulation Grade:
F

Working Efficiency: 85%
Protection Grade: IP65
Brake Length: 40-50mm
Certificate: CE, RoHS, ISO
Weight: 12 kg

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.


Features

  • Stable speed control: 96V brushless motor continues to set speed and a feedback signal is compared from the speed of the motor to adjust the voltage applied to the motor; therefore, even if the load change, still can set the speed from slow instantaneous adjustment to, and in order to stabilize the running speed.
  • Thin, high power: 3 phase DC motor adopts a permanent magnet brushless motor rotor, thus realizing the thin and high power.
  • Wide speed control range: 1 kW brushless DC motor speed control range than speed ac motor and inverter wider, because unlike the speed ac motor that at low speed have restrictions on the use of torque, so there is no brush motor is suitable for from low speed to high speed, all require the use of a certain torque.
  • Contribute to energy saving: The rotor of the brushless dc electric motor is used for the permanent magnet, which can reduce the two-loss of the rotor, so the power consumption is reduced by more than 20% compared with the three-phase induction motor with variable frequency control, which is helpful for the energy saving of the device.
  • Equipped with protection function: 96V 1000W BLDC motor can help to protect the safety of the equipment system.

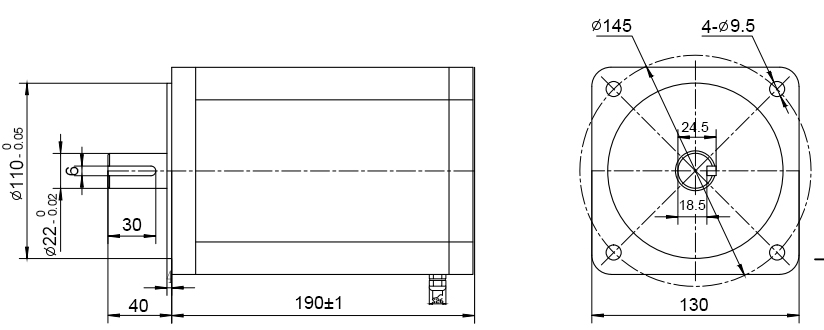

Dimension (Unit=mm)

1 kW brushless dc motor dimensions

Line Define

Power Wire

Red Yellow Blue
Motor U Motor V Motor W



Feedback Wire

Hall Line Color Hall Signal Definition Plug Serial Number
Orange and Black 5V 1
Orange 0V 2
Yellow Hall A 3
Blue Hall B 4
Green Hall C 5



Details

1000W BLDC motor details



Applications

Brushless DC motors are widely used in our lives, such as electric bicycles, inverter air conditioners, washing machines, drones, automobiles, CNC machine tools, polishing and grinding equipment, packaging machinery, tools, turnstiles, industrial control, medical machinery, automation to, AGV trolley, aerospace, and intelligent storage equipment, etc.

BLDC applications

Tips: Can you provide the 1 to 1.5 hp BLDC motors that can spin at 4000 rpm?

Yes, we can customize 1-1.5 hp motors with 4000 rpm rated speed, but the housing temperature of the motor will increase by about 10-20 degrees when the motor runs at 4000 rpm.

Document

DownloadPDF 96V 1000W BLDC Motor Specs Datasheet PDF

Download PDFBrushless KBL Series BLDC Motor Controller User Manual

Download PDFBrushless BLDC Motors Catalog

Write your own review
*
*
Reviews
Good 100w bldc motor for the price
A good bldc motor from ATO, I bought this 96v 100w brushless DC motor a month ago. it worked perfectly for my go-kart system. Will buy it again if I need it!
Joherry | 3/21/2023 12:26 AM
Was this review helpful? Yes No (0/0)
